General
Brand
Hikvision
Model

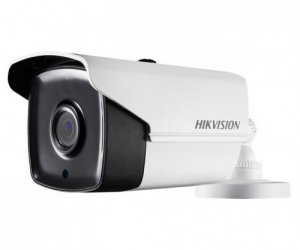

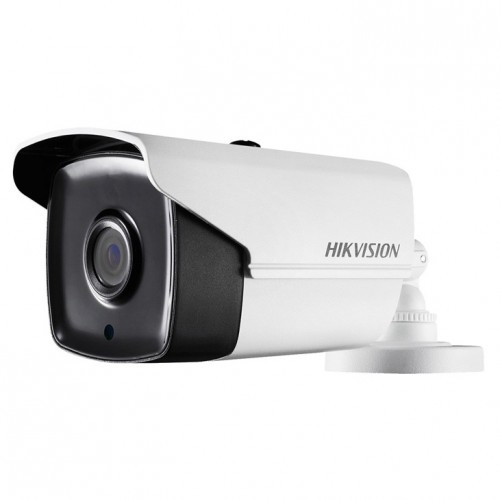

Hikvision DS-2CD1T23G0-I
Usage
Outdoor
Type
Bullet IP Camera
Part No
DS-2CD1T23G0-I
Camera
Camera Type
Fixed
Mega Pixels
2.0MP
Max. Camera Resolution
1920 x 1080
Image Sensor
1/2.8 inch Progressive Scan CMOS
Resolution
1920 x 1080
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Day & Night
IR Cut Filter
Night Vision
Yes
Lens
Lens
4mm
Lens Mount
M12
Lens Adjustment Range
Pan: 0 degree to 360 degree, tilt: 0 degree to 180 degree, rotate: 0 degree to 360 degree
Viewing Angle.
86 Degree - 54 Degree(H), 47 Degree - 31 Degree (V), 103 Degree - 63 Degree (D)
Digital Noise Reduction (DNR)
3D DNR
Wide Dynamic Range (WDR)
DWDR
Network & Connectivity
Interface(s)
RJ45 10M/100M self-adaptive Ethernet port
Wi-Fi
No
Wi-Fi Details
No
Wi-Fi Pairing
No
Security
Security
Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Password Protection
Yes
Watermark
Yes
Motion Detection
Yes
Dust Protection
Yes
Water Protection
Yes
Weather Proof
Yes
Simultaneous Live View
Up to 6 channels
Technical Info
Video Type
H.265+, H.265, H.264+, H.264
Wavelength
850 nm
Mic & Speaker
No
Ingress Protection Grade
IP67
Working Distance
50 Meter
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
Physical Description
Form-Factor
Bullet
Storage Type
Unmentioned
Body Material
Metal (Camera Body), Plastic (Bottom Base)
Color
White
Dimensions
71.67 x 92.87 x 221.49 mm
Weight (gm)
540 gm
Power
Power
5.5 mm coaxial power plug
Power Supply
12 VDC +- 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
Power Consumption
12 VDC, 0.40 A, max. 4.8 W
Operating Temperature
-30degree C to 60degree C
Storage Temperature
-30 Degree C to 60 Degree C
Operating Humidity
Humidity 95% or less (non-condensing)
Storage Humidity
Humidity 95% or less (non-condensing)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Night Vision Mode
Black and White
Others
Min. Illumination Color: 0.028 Lux (F2.0, AGC ON), 0 Lux with IR, Shutter Speed: 1/3 s to 1/100,000s, Slow Shutter: Yes, Wide Dynamic Range: Digital WDR, Day & Night: ICR Cut, Aperture: F2.0, Lens Mount: M12, Wavelength: 850 nm, Smart Supplement Light: Yes, Video Compression: (Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG), Video Bit Rate: 32 Kbps to 8 Mbps, Simultaneous Live View: Up to 6 channels, Web Browser: IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+, Day/Night Switch: Day, Night, Auto, Schedule, Image Enhancement: BLC, HLC, 3D DNR, Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port, Firmware Version: V5.5.84, Material: (Front cover & bracket: metal Back cover & sun shield: plastic)
Specialty
1/2.8 inch Progressive Scan CMOS, Max 1920 x 1080 30fps, 4/6 mm fixed lens, H.265+, H.265, H.264+, H.264, Up to 50 m IR range, IP67
Country Of Origin
China
Made in/ Assemble
China
Quick Overview
Brand - Hikvision, Model - Hikvision DS-2CD1T23G0-I, Usage - Outdoor, Type - Bullet IP Camera, Form-Factor - Bullet, Camera Type - Fixed, Mega Pixel - 2.0MP, Max. Camera Resolution - 1920 x 1080, Image Sensor - 1/2.8 inch Progressive Scan CMOS, Scanning System - Progressive, Lens - 4mm, Lens Adjustment Range - Pan: 0 degree to 360 degree, tilt: 0 degree to 180 degree, rotate: 0 degree to 360 degree, Video Type - H.265+, H.265, H.264+, H.264, Resolutions - 1920 x 1080, Shutter Speed - 1/3 s to 1/100,000 s, Slow Shutter - Yes, Day & Night - IR Cut Filter, Night Vision - Yes, Wavelength - 850 nm, Mic & Speaker - No, Audio Communication - No, Interface - RJ45 10M/100M self-adaptive Ethernet port, Wi-Fi - No, Wi-Fi Details - No, Wi-Fi Pairing - No, Security - Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, Card Slot - No, Storage Type - Not Specified, Storage Supported - Not Specified, Wide Dynamic Range (WDR) - DWDR, Password Protection - Yes, Watermark - Yes, Motion Detection - Yes, Dust Protection - Yes, Water Protection - Yes, Weather Proof - Yes, Ingress Protection Grade - IP67, Simultaneous Live View - Up to 6 channels, Working Distance - 50 Meter, Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP, Power Supply - 12 VDC +- 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection, Power Consumption - 12 VDC, 0.40 A, max. 4.8 W, Operating Temperature - -30degree C to 60degree C, Operating Humidity - Humidity 95% or less (non-condensing), Body Material - Front cover & bracket: Metal, Back cover & sun shield: Plastic, Color - White, Dimensions - 71.67 x 92.87 x 221.49 mm, Weight (gm) - 540 gm, Others - Min. Illumination Color: 0.028 Lux (F2.0, AGC ON), 0 Lux with IR, Shutter Speed: 1/3 s to 1/100,000s, Slow Shutter: Yes, Wide Dynamic Range: Digital WDR, Day & Night: ICR Cut, Aperture: F2.0, Lens Mount: M12, Wavelength: 850 nm, Smart Supplement Light: Yes, Video Compression: (Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG), Video Bit Rate: 32 Kbps to 8 Mbps, Simultaneous Live View: Up to 6 channels, Web Browser: IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+, Day/Night Switch: Day, Night, Auto, Schedule, Image Enhancement: BLC, HLC, 3D DNR, Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port, Firmware Version: V5.5.84, Material: (Front cover & bracket: metal Back cover & sun shield: plastic), Specialty - 1/2.8 inch Progressive Scan CMOS, Max 1920 x 1080 30fps, 4/6 mm fixed lens, H.265+, H.265, H.264+, H.264, Up to 50 m IR range, IP67, Part No - DS-2CD1T23G0-I, Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
