Recording | ||
Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
Resolution | When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF | |
Bit Rate | 32 Kbps to 10 Mbps | |
Others | Frame Rate Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) Dual-stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps |
|
Video Detection And Alarm | ||
Alarm Input | N/A | |
Network | ||
Ethernet Port | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface | |
Network Function | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
Storage | ||
Internal HDD | 2 SATA interfaces | |
Auxiliary Interface | ||
USB | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 | |
RS485 | RS-485 (half-duplex) | |
Power | ||
Power Supply | 12 VDC, 5 A | |
Power Consumption | ≤ 40 W | |
Construction | ||
Dimensions | 380 × 320 × 48 mm (15.0” × 12.6” × 1.9”) | |
Net Weight | ≤ 2.1 kg (4.6 lb) | |
Warranty | ||
Manufacturing Warranty | 01-Year Warranty |

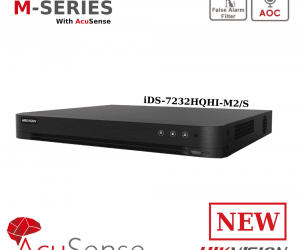

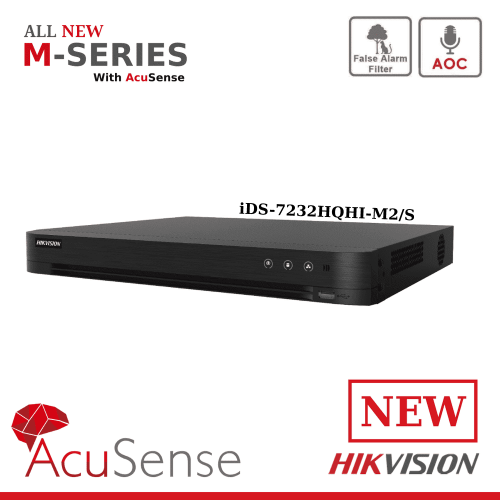

The Hikvision IDS-7232HQHI-M2-S is a high-performance 32-channel 1080p 1U H.265 AcuSense DVR designed for surveillance and security applications. It incorporates advanced technologies and features to ensure reliable and efficient video recording and monitoring. This DVR is its deep learning-based motion detection 2.0, which is available for all analog channels. This technology utilizes artificial intelligence and deep learning algorithms to accurately detect and analyze motion in the video feed. It helps to reduce false alarms caused by environmental factors and ensures that only relevant events are flagged for further action. The IDS-7232HQHI-M2-S is equipped with deep learning-based perimeter protection capabilities. This feature enables the DVR to intelligently identify and classify objects entering or leaving a predefined area, such as a building entrance or a restricted zone. It enhances the security system's ability to detect and respond to potential threats in real time. The DVR employs H.265 pro+ compression technology, which is highly efficient in reducing bandwidth and storage requirements without compromising video quality. This compression standard allows for the encoding of video at up to 1080p resolution and 15 frames per second (fps), ensuring smooth and detailed playback. The IDS-7232HQHI-M2-S offers flexibility in camera connectivity with support for five input signals adaptively, including HDTVI, AHD, CVI, CVBS, and IP. This versatility allows users to integrate various types of cameras into their surveillance system, making it compatible with a wide range of camera models and brands. The DVR provides ample scalability with the ability to connect up to 40 network cameras. This allows for the expansion of the surveillance system to accommodate additional cameras as the security needs grow, providing comprehensive coverage for larger areas or multiple locations. The Hikvision IDS-7232HQHI-M2-S 32 Channel 1080p 1U H.265 AcuSense DVR offers advanced features, intelligent motion detection, perimeter protection, efficient compression technology, and flexible camera
