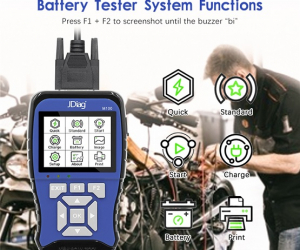

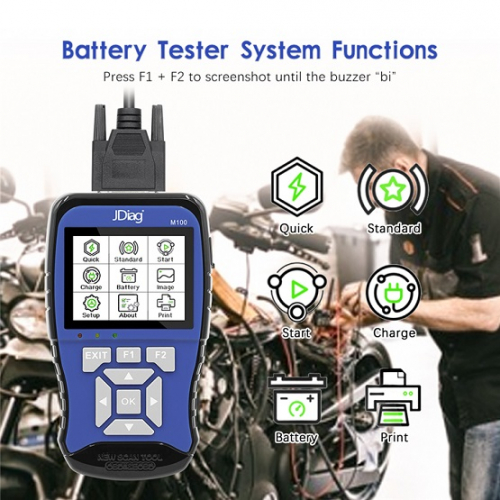

Motor-Bike Scanner JDiag M100 Motorcycle Diagnostic Tool for k-awasaki y-amaha s-uzuki etc Motorbike Scanner Motor Scan Battery Tester

JDiag M100 Moto Scanner Universal Motorcycle Scan Tool

M100 Moto Scanner is the new generation Handheld Motorcycle diagnostics tool, it covers virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and make repairs faster; many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.

It allows the technician to perform factory service procedures such as re-setting the service light, encoding keys, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.

The tool shows live data, displays ECU data, reads stored faults(history) or live data (RPM,batteryvoltage, throttle angle).

Features:---

1, Handheld operation, convenient and flexible to use

2, Support for SD cards to store data and upgrades,

3, Reserved CAN bus interface

4, 3.2-inch color screen, clear display.

6Dynamic data with numerical and waveform.

Functions:

1. Read system information

2. Read data stream

3. Read fault code

4. Erase fault code

5. Freeze data

6. CO idle speed adjustment

7. Actuators test

8. ABS system test

9. Troubleshooting guidance

10. Tire pressure system test

11. Anti-theft system test

Supported Motorcycle list: Hartford, A-e-on, H-on-da, S-Y-M, Y-ama-ha, Suzuki, Kymco, Kawasaki, Piaggio, PGO,KTM,Indian Bikeetc

Supported Languages: English, Chinese, Thai, Indonesian, Vietnamese, Spanish

Specifications:

Power: DC10-15V

Operating Current: 250mA

Storage temperature: -10 C to 85 C

Operating temperature: 0 C to 70 C

Humidity: <90%

Upgrade Ports: USB port

Communication ports: COM port

Package List:

1. Scan Tool  main unit

2. Test cables

3. USB Cable

4. User Manual

5. Protective ABS Toolbox
