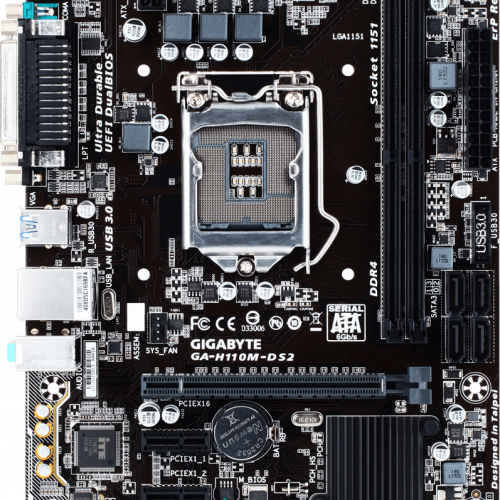

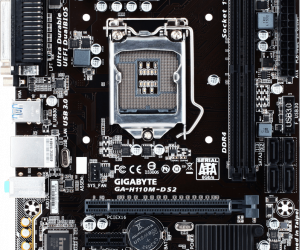

Gigabyte Genuine GA-H110M-DS2 Micro ATX Motherboard
Location: Jatra-Bari-Dhaka
Rate this product!
Specification
| Basic Information | ||
| Supported CPU | Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU |
|
| Chipset | Intel® H110 Express Chipset | |
| BIOS | 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
| Memory | ||
| Type | Dual channel DDR4 memory architecture | |
| Slots | 2 x DIMM | |
| Supported Memory | Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
| Maximum Memory | 32 GB | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| Max Shared Memory | 1024 MB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| D-Sub (s) | 1 x D-Sub | |
| USB (s) | Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 4 x SATA 6Gb/s connectors | |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Key Features
- Model: GA-H110M-DS2
- CPU: 7th/ 6th Generation Intel Processors
- Chipset: Intel H110 Express
- 2 x DDR4 DIMM
- 3 x PCI Express slot
Description
Gigabyte GA-H110M-DS2 Micro ATX ultra durable motherboard has the compatibility with 7th/6th i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 32GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200@60 Hz for D-Sub port. This basic motherboard has the facility of Audio Noise Guard with LED Trace Path Lighting, 8-channel HD Audio with High Quality Audio Capacitors and Realtek® GbE LAN with cFosSpeed Internet Accelerator Software. This board also contain All new GIGABYTE™ APP Center for simple, GIGABYTE UEFI DualBIOS™ Technology and easy use and support Intel® Small Business Basics.
Purchase high quality Gigabyte boards within your range, available at best price at Star Tech. We provide the best service in every aspect. Online shopping and purchase from our stores to have your desired item to build your dream PC.
