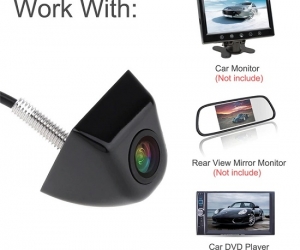

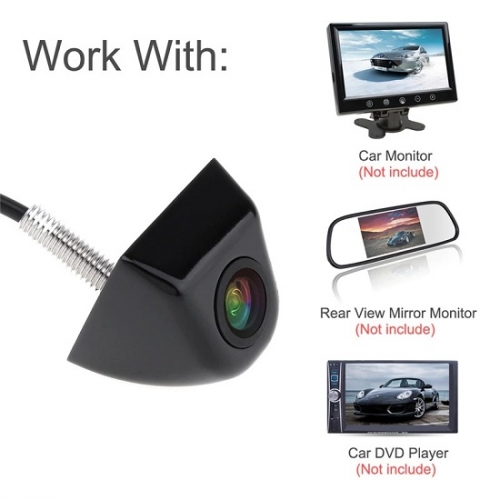

AHD Vehicle Reverse camera, Car Rear View Camera Auto CCD HD Parking Reverse Backup Rearview Camera Degree Waterproof

HD Car Rear View Camera Front View Backup Camera Reverse camera Auto Car Back Fish Eyes AHD Parking Assistance Camera

CVBS A Camera Version: Guideline Adjustable

Features:
High-definition and wide viewing angle
IR LENs Night Vision
Weatherproof/Waterproof, can be used both in car and nbsp;
Resolution: 600V line
Perfectly solve the issue of bad car rear view effect , can help reduce incidents and accidents
Image sensor: PC1030 (Distance reference marking display)
Power supply: DC 12V
S/N Radio: better than 48db
Video output: RCA connector, 1.0vp-p,75ohm
Waterproof grade: IP68
Effective Pixels:800x600pixles/PAL,800X600pixels/NTSC

Instructions:

1.If you need a backup camera without a distance scale line, do no cut any wires.
2.If you need a backup camera with a distance scale line, please cut the green wire.
3.If you need a front camera with a distance scale line, please cut the white wire.
4.If you need a front camera without a distance scale line, please cut both the green and white wires.

AHD B Camera Version:

1. Image Sensor: Sony AHD
2. TV system: NTSC / PAL Option
3. TV Line: 1000 TV Line
4. Effective Pixels: 1080 x 720 Pixels.
5. Starlight Night Vision. The visible distance is more than 10 meters
6. Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
7. Video Output: 1.0Vpp, 75Ohm
8. White Balance: Auto
9. Power: DC 12V
10. Video Cable Length: 6M
11. Power Supply Cable Length: 1.5m
12. Only fit for the AHD car monitor
Diagonal viewing angle 170 degrees, horizontal viewing angle 130 degrees

Package List:
1 x Rear View AHD Camera
1 x 6m Video Cable

AHD 720P/CVBS 600P Signal Switching

If your rearview not support AHD signals, Cut the Line. Use CVBS Signal.
AHD Signal 1080X720
CVBS Signal 800X600

Attention

If your video format is only AHD / 25 or AHD / 30 (AHD25FPS or AHD30FPS),AHD 1080 / 25 or AHD 1080/ 30 (AHD1080P25FPS or AHD1080P30FPS) .Please do not cut the thread.

About Reversing ruler line

The AHD camera does not have a Reversing ruler line. The Reversing ruler line shown comes with the Android system.

Buyer Show

The Rear View of the car is unobstructed and the safety system is instantly improved

IP68 Waterproof
