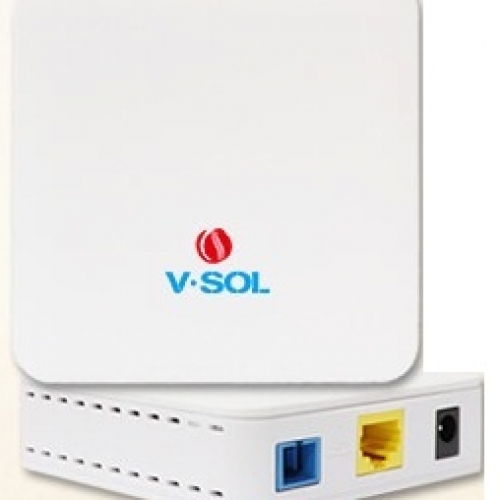

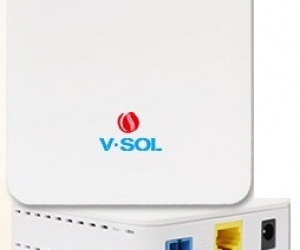

V-SOL 1G Epon ONU

V2801SE is 1GE Secure ONU designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. It is based on the stable and mature EPON technology, which has high performance/price ratio, and the technology of layer 3 Ethernet switch. It is high cost performance and easy to maintain, with Dual mode, Industrial design,and Powerful firewall.

Technical Specifications

Power adapter input:220V AC,50HZ
System power supply:  See the nameplate on the device
Ambient temperature:-20 ~ +55℃   Ambient humidity:10% ~ 95%(non-condensing)
Store temperature:-30 ~ +60℃  Store humidity:10% ~ 95%(non-condensing)
For other technical specifications, see the following table:
Model

Dimension

(L x W x H)

Power

Power Consumption

Weight(No Power Adapter)

V2801ZE

115mm×75mm×28mm

12V,0.5A

≤3.6W

About 120g

Hareware parameter

Parameter Name

Hardware Parameter

EPON

Chipset

ZTE

PON

SC single-mode/single-fiber, symmetric 1.25Gbps

Wavelength

Tx 1310nm, Rx 1490nm

Sensitivity

<-27dBm(PX20+)

Overload

>-3dBm(PX20+)

Optical Type

SC/PC

Interface Type

1*10/100/1000Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector

Indicators

5, For POWER,LOS,PON ,Link,System
