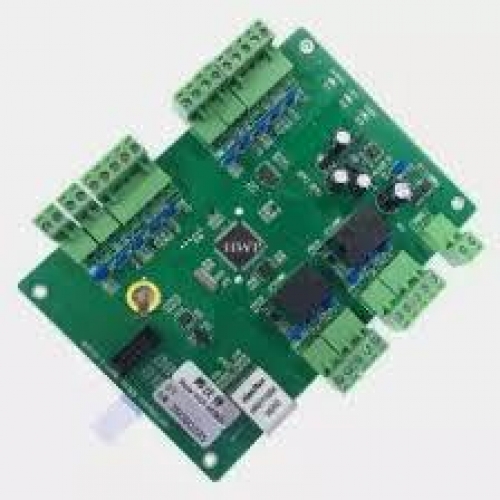

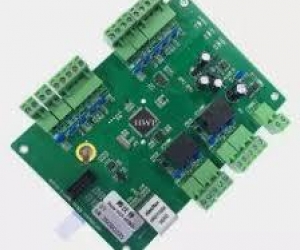

Two Doors Network Access controller TCP access controller Two-door controller Multi-door controller

 Power supply: DC 12 V
 current: <500mA
 Power: 1 W
 Opening Hour: 1-65535 seconds
 temperature: <60 degrees
 humidity: 10% ~ 95% RH
 size: Approx. 160x130x20mm
 it can be bi-directional access control board
 card capacity: 26,000 users
 100,000 records of offline storage
 TCP / IP LAN WAN network control
 anti-submarine, interlocking, multi-card access, card access, first door access and other advanced functions
Basic configuration:
 Database: ACCESS and SQL
 Access control Reader: four WG26 / 34 readers
 Alarm Output: Two 1-65535 seconds
 Alarm Input: 2

 Outdoor Button: 2
 Sensor Input: 2
 Electric Lock Output: 2

. Communication interface: TCP 100 M to support Gateway
function and functions:
 Extract and upload data automatically
 Unlock duration and allowing other characteristics (alarm) settings
 Set the path for data backups, used for data recorded automatically while logging- off
 Set the connecting parameter (set the communication parameter)
 TCP Internet
 Distribute card
 Blacklist
 Report card loss
 Card recovery
 Automaticlly issue card function
 Copy permission
 verify authority by person / door
 Create a password to the door
 Acquire access records manually
 check records
 Monitor the amount of person in a region
 Set the screen of regional bulletin
 Real-time data monitoring
 off real-time monitoring
 Remote unlocking
 Voice prompt
 LED bulletin screen setting
 Import unregistered card
 Electronic card monitoring
 Video Monitoring
 Abnormal status
 Limit the Person number inside the door
 Set reader interval
 Set Anti-sneaking
 Alarm Setting
 Access fire alarm setting
 Bandit alarm setting
 Host security setting
 smoke detector setting
 Unregistered card alarm
 Forced alarm setting
 Overtime alarm
 Magnetic Alarm Setting
 Blacklist alarm setting
 Set door function
 Unlock holding setting
 Enforced unlock
 Timed open setting
 Enforced lock
 Timed lock setting
 ​​Access authentication
 Multi-card for access setting
 The first card for access setting
 All cards access setting
 Exit switch setting
 Multi-door interlock setting
 Anti-sneaking setting
 Repeat reading interval
 Inside and outside
 Remember card expiration
 Regional Anti-sneaking
 Regional interlocking
 Opening door by combined authentication
 Holiday setting
 Timed broadcast setting
 Voice broadcast setting
 Card-reading broadcast setting
 Board Buzzer Management
 Unlock output mode

Package Included:
 1 x TCP Two Doors Network Access Controller
 1xCD
