Transistor Tester M328 Multi-Purpose Components Tester

Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices. Easy and convenient to operate.

Features:
128*160 TFT color display for easy readings, can display measured data and graphics.
Powered by 9V battery(not included).
All components are protected by a plastic case, convenient to carry.
Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices.
Automatically test the pins of a component and display on the LCD.
Measure the gate threshold voltage and gate capacitance of the MOSFET.
Measure bipolar transistor current amplification factor and base-emitter threshold voltage.
Two-button operation, automatic shutdown to avoid unnecessary waste.
Short detection time: only 2 seconds. It is normal to cost 1 minute for bulk capacitor detection.

Note:
Please make sure that capacitors are discharged before testing.

Specifications:
Case Color: Gray
Display: 1.8" TFT Color Display
Material: PCB + Plastic
Shutdown Current: 20nA
Resistor Test Range: 0.5Ω-50MΩ
Inductor Test Range: 0.01mH-20H
Capacitor Test Range: 25pF-100000uF

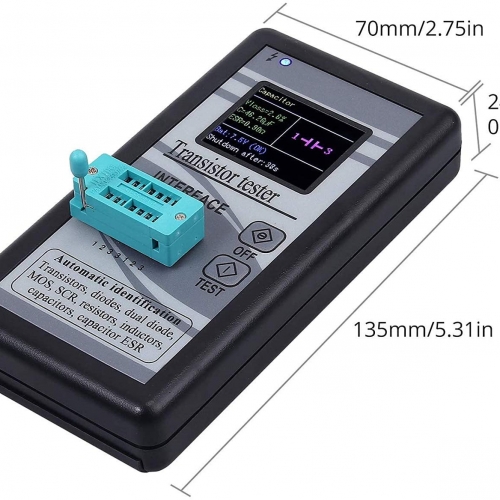

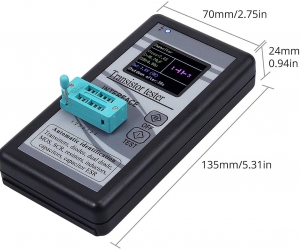

Item Size: 13.5 * 7 * 2.2cm / 5.3 * 2.76 * 0.86in
Item Weight: 99g / 3.5oz
Package Size: Approx. 16 * 8 * 2.5cm / 6.3 * 3.15 * 0.98in
Package Weight: 102g / 3.61oz

Package List:
1 * Transistor Tester (battery not included)
