DC 52V 1.5A Power Supply Adapter
Condition : Brand New
*Last Updated On :
2 years ago
*Status :
In Stock
Seller:
Location: Elephant-Road-Dhaka
Rate this product!
Description

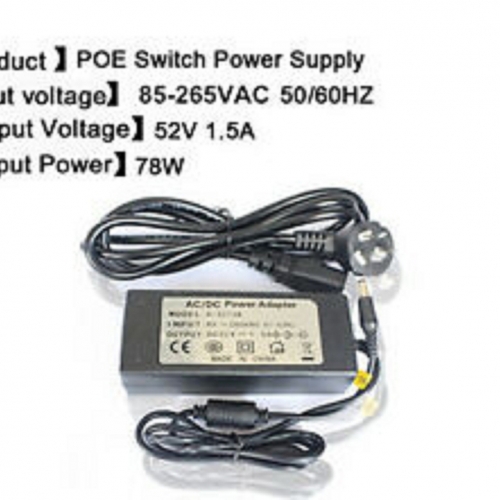

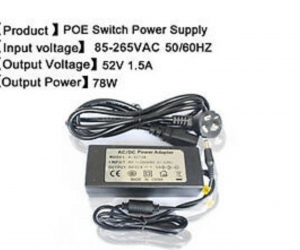

DC 52V 1.5A POE Swtch Power Supply Adapter (P512500D)
This type POE Power Supply Adapter is designed by our R&D team, Input voltage AC 110V-240V 50/60Hz, output voltage is DC52V, power is 78W, cooperated with POE switch, can be supply power to POE switch.
Specifications:
| Product | POE Switch Application Power Supply Adapter |
| Model | Power Supply Adapter P512500D |
| Input Voltage | AC 110V-240V 50/60Hz |
| Output Voltage | DC52V |
| Output voltage accuracy | ≤±2% Vo |
| Output Current | 1500mA |
| Output Power | 78W |
| Short circuit protection | It will be a burp protection after short circuit, the automatic recovery appeared after the short circuit been removed |
| Over current protection | ≤110%-200%I0, it will be a burp protection after over current protection, over current protection under the condition of the state to reduce the load can automatically resume normal output |
| Over Voltage Protection | Null |
| Idle standby power consumption | ≤1.5W |
| Efficiency | ≥80% |
| Working frequency | 65KHz |
| Ripple and noise | ≤240mV |
| Surge current | <50A |
| AC leakage current | <10mA |
| High pressure | Input -output 1.5KV,input -housing 1.5KV |
| Insulation resistance | >=50MΩ |
| Lightning strike | Null |
| Standard | GB8898-2011 GB13837-2012 GB17625.1-2012 |
| Input | 3-PIN AC |
| Working environment | 0ºC~+40ºC |
| Weight | 0.24kg |
| Dimension | 127*52*32mm |
Production Display
