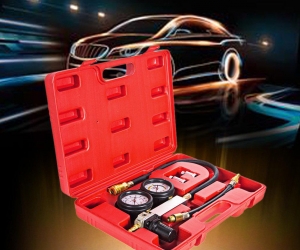

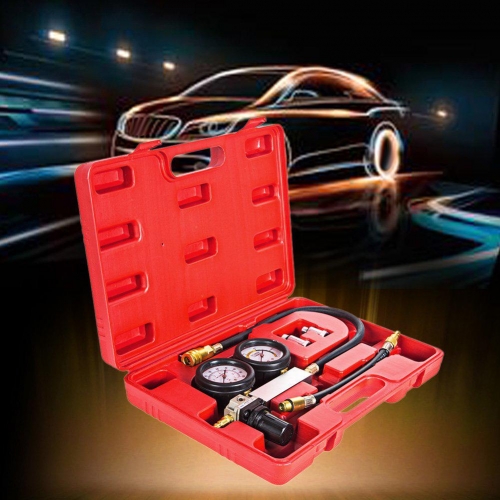

TU-21 Gasoline Engine Compression Cylinder Leak Detector Tester Gauge Tool Kit

Name: Cylinder Leak Tester Group

Main material: Metal, plastic

Measurement range: 0-100psi

Fixed short connector: M12

Fixed long connector: M14

Frames and display items Includes:

1 x Dual calibrated in Leak Detection Unit (Suitable for use on any gasoline engine with 12mm or 14mm spark plugs)

1x Flexi Tube

1x Fixed short connector

1x Fixed long connector

1x Case

Method of

1. Remove the engine spark plugs, use the hand crank to rotate the crankshaft, shaft make the piston to top dead center, hang the direct gear, and tighten the parking brake to prevent the compressed air from pushing the piston during the test.

2. screw the air supply connector on the first cylinder to the top dead center compression, and connect the air exchange tube with the quick-change end connector to the output of the measuring instrument. At the same time, connect the air compressor to the input end of the test instrument. Turn off the valve regulator tool (pulse the regulator knob when in use).

3. start the air compressor to inflate, close when it is charged for 0.8MPa, prepare the chronograph stopwatch, quickly open the pressure regulating valve, press the stopwatch at the same time, record the dwell time, observe the change of the measured pressure gauge, when the relative pressure drops A 0.4MPa, According to the stopwatch, the time required to reduce the pressure gauge from 0.8 MPa to 0.4MPa is recorded. Using the length of this time to compare similar machines, the degree of damage to the dispersion cylinder can be diagnosed, and the longer the maintenance time is, the better of the sealing cylinder is; if the pressure is short, usually less than 10 seconds, the cylinder will seriously leak and must be repaired. In order to facilitate the test, the sequence of each test cylinder is carried out according to the ordering of the cylinders. A 180 ° crankshaft revolution is used to test a cylinder.

Judging the spill starts
