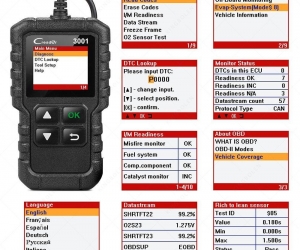

LAUNCH CReader 3001 OBD2 Scanner

Running a full OBDII / Car Brand EOBD Reader 3001 diagnostic tool PK AD310 NL100

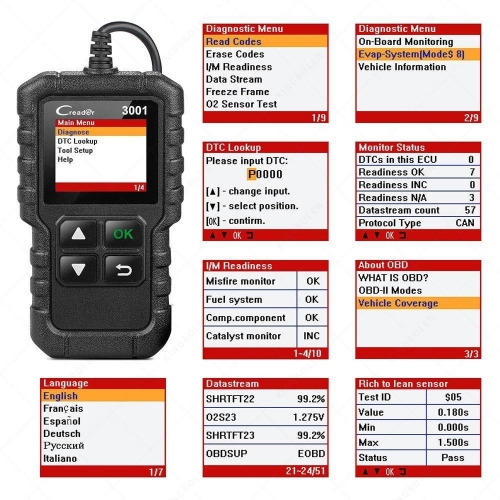

Run CR3001 code reader Engine Checks including:

1, read the code

2, remove the code

3, operational data

4, freeze frame

5, I / M reading

6, freeze the prame

7, O2 sensor test

8. Built-in monitor

9, EVAP Systems

10. Car reading information

Multi-Language:

English, French, Russian, Spanish, German, Italian, Portuguese

Car models support:

1. USA cars after 2000 r. For Chrysler, suitable for Ford, suitable for GM, suitable for Jeep ........

2. EU cars after 2003, such as For Alfa Romeo, suitable for SAAB, suitable for Acura ...........

3. Japan and Korean cars after 2006 p. Fit for KIA, fit for Toyota, fit for Honda, fit for Mitsubishi ..............

4. Chinese cars after 2009 p.

OBD 2 vehicle support: (must be OBD2 porotocols car)

1. SAE J1850 PWM (41.6 kbaud)

2. SAE J1850 VPW (10.4 kbaud)

3. ISO9141-2 (5 baud init, 10.4 kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 kbaud)

5. ISO14230-4 KWP (fast init, 10.4 kbaud)

6. ISO15765-4 CAN (11 bit ID, 500 kbaud)

7. ISO15765-4 CAN (29bit ID, 500 kbaud)

8. ISO15765-4 CAN (11 bit ID, 250 kbaud)

9. ISO15765-4 CAN (29bit ID, 250 kbaud)

Launch CR3001 Specifications:

Screen: 1.77 "TFT, 160 * 128 dpi

Voltage range: 9-18 in

Operating temperature: 0 ℃ -50 ℃ (32 ℉ -122 ℉)

Ambient temperature: -20 ℃ -70 ℃ (-4 ℉ -158 ℉)

Size: 118 mm * 68 mm * 22.3 mm (4.65 "* 2.68" * 0.88 ")

Weight: <200 g Supported vehicles

Run the CR3001 Highlight: ( Available than the AD310 NX510 )

Characteristics that you need: color LCD display; View frame freeze data; View graphic and numeric data streams; sensor tests;monitoring test systems; without batteries, powered via OBDII cable.

Sophisticated design: an all-in-one screen and easy-to-use hotkeys make the CReader 3001 an ideal tool for DIYers and professionals.

Powerful features: full OBDII / EOBD diagnostic functions. Read and clear dkn, I / M readiness status, read freeze frame, read data stream, Read vehicle information, O2 Sensor Tests, system monitoring on board Tests (mode 6), read pending DTCs, read permanent DTCs, turn off the indicator malfunction (MIL).

Quality Assurance: Full manufacturer's warranty and satisfaction guarantee. The tool software can be updated via the Internet, so you always have the latest car model data. Launch is the leading brand of car diagnostic tool.

Equipment:

1 x Start CR3001
