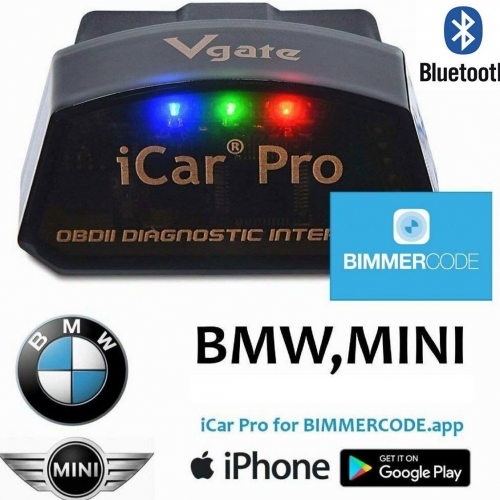

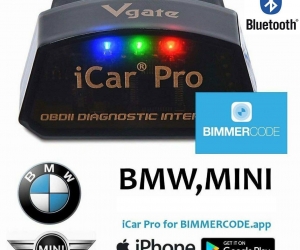

Vgate iCar Pro Car WIFI OBD2 Scan Tool Code Reader Scanner Adapter

Please note:

1.According to your needs, then choose Bluetooth3.0/Bluetooth 4.0/WIFI(Do not choose the wrong version)

2.Please connect WIFI or Bluetooth directly in the software, do not connect on the phone's settings page, otherwise you will not be able to connect , Here is the Bluetooth setting manual ( if your choose wifi version , pls choose wifi connect )

3.   ICAR pro special features：Auto sleep mode and Ultra low power consumption

4. Here is the function of Icar pro :

    Check Engine

    Data Logging

    Delect / Clear the fault code

    Real-time Connected

    Display Current Sensor data

    Vehicles information

Top Recommander :

1. Vgate icar pro is with Real V2.1 version,support ATPPS:

2. Vgate icar pro supports 2.1 command,ELM327 ldentifier testing:

Software Display :

For Android :

For IOS :

Auto doctor for IOS system:

Bimmer Code for BMW-designated models

Vgate ICAR PRO Description :

Vgate iCar Pro OBDII adapter is a powerful car diagnostic tool.

​

It is compliant with full OBD II / EOBD specifications. Various wireless connection model to connect your smart phone or pad. It reads the real-time car engine data, such as engine speed, ignition time, fuel trim, water temperature, fuel consumption It support a variety of OBD II apps.

Vgate iCar Pro Specification:

Supply Voltage: 11.5V-15V

Supply Current: <200Ma

Standby Current: <30Ma (TONWON Pro = <3Ma)

Operating temperature: -40 C - 85 C

Operating Humidity: 5% - 95% RH Non-Dewfall

ICAR PRO Bluetooth 3.0 opearting system: Android, Windows,

ICAR PRO Bluetooth 4.0 opearting system: IOS / Android / Windows

ICAR PRO WIFI version operating system: IOS / Android / Windows

Vgate iCar Pro OBD II adpater is a High-quality automotive scanning tool, Supports all OBD-II

Protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

SAE J1939 CAN (29bit ID, 250 x Kbaud)

USER1 CAN (11 x bit ID, 125 x Kbaud)

USER2 CAN (11 x bit ID, 50 x kbaud)

x Default Settings (User Adjustable)

Vgate iCar Pro Features:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their     meaning. (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others…

Vehicle Coverage:

Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)

Packing List :

1pc x Vgate iCar PRO (Bluetooth 3.0 / Bluetooth 4.0 / WIFI )

1pc x User Manual
