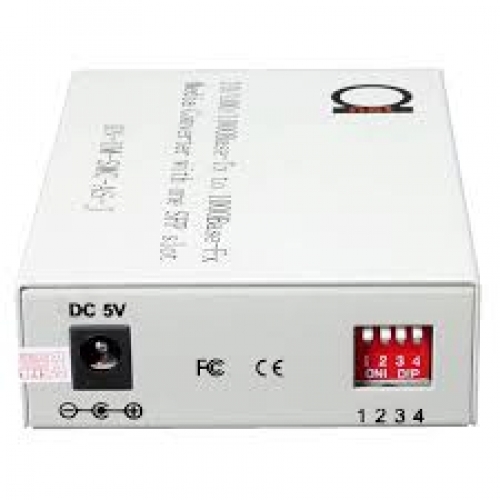

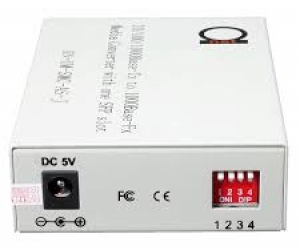

AC-net Single Mode LLF Gigabit Fiber Media Converter
Location: Jatra-Bari-Dhaka
Rate this product!
Description
Item # A084683750
Model # RL34L-00-B07CX-1
Single Mode LC Gigabit Fiber Media Converter - Includes LC SFP 20 km (12.42 Miles) LC – to UTP Cat5e Cat6 10/100/1000 RJ-45 – Auto Sensing Gigabit or Fast Ethernet Speed - Jumbo Frame - LLF Support
Item Condition : New
Brand : ac-net
Item model number : AN-UM-SMC-AS-J + SM-SFP-kit
Color : Single Mode 12.42 mi (20 km) LC
Size : Gigabit Autosensing 10/100/1000
Product Information
- AUTOMATICALLY adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed And Extends it over Single Mode Fiber to up to 20 km – 12.42 miles - (Transmission Wavelength -– 1310 nm), Ethernet to Fiber applications now are easy;
- NO MORE Integration Hassles, simply plug in an Ethernet cable to any Ethernet port, whatever speed it is! UPC (Blue) Type Singlemode LC Fiber Patch-cords Supported;
- SUPPORTS Jumbo Frame & LLF feature - for increased end-to-end TCP performance for media converter fiber unit and end point smooth interconnection;
- PLUG & PLAY Fiber Media Converters - Simply plug in an optical LC port and UTP RJ-45 port, and it will work immediately;
- FREE UTP Cat5e Patch Cable (1m - 39in) Comes In The Set With Every Unit! - Colors May Vary Depending on Stock;
Description
AN-UM-SMC series media converters are effective solution, when fiber uplink interface is needed to change frequently, or network re-design is necessary. AN-UM-SMC media converters offer 1 10/100/1000 twisted pair slot and 1 SFP module universal socket.
Using an SFP-based media converter, a switch or router with copper interfaces can be attached to single-mode fiber optic cabling to reach extremely long distances (for example up to 80km for Gigabit Ethernet, as opposed to 100 m for copper or 500 m for multimode fiber).
Features
-
Compliant with IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 100BASE-FX Ethernet Standards.
-
Provide one 10/100BASE-T port or 1 10/100/1000 port (depending on model) with RJ-45 connector;
-
Provides 1 slot for universal SFP modules, all major SFP brands are supported;
-
Supporting hot-swap of SFP modules;
-
Front panel Diagnostic LED Indications;
-
Can be installed in AN-CH05 chassis – universal type casing
-
Supports Auto MDI / MDI-X function
-
Supports Jumbo Frames, MPLS packed size, brand new chipset is used
Specifications
|
Standard |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX, 100BASE-FX, 1000Base-Tx, 1000BaseTx |
|
Network Media |
10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 m (328 ft) 100BASE-TX: 2-pair UTP Cat. 5, up to 100 m (328 ft) 1000BASE-TX: 2-pair UTP Cat. 5, up to 100 m (328 ft) 9/125μm or 10/125μm single-mode fiber optic cable, up to 120km |
|
Protocol |
CSMA/CD |
|
Topology |
Star, point to point |
|
Number of Ports |
1 x 10/100BASE-TX auto-negotiation, auto-MDIX 1 x SFP slot |
|
Network Data Transfer Rate |
10/100/1000Mbps (Full-duplex) |
|
Diagnostic LEDs |
Per Unit : Power Per port: Link/Activity, Full-duplex/Collision, Speed (only for TX port) |
|
Connectors |
UTP RJ-45, SC/ST Fiber connector |
|
Fiber port |
SFP standard slot |
|
Power |
External 5V DC 1A |
|
Dimensions (WxDxH) |
70.6 x 94.2 x 26mm |
|
Temperature |
Operating: 0 ~ 40 C Storage: -10 ~ 70 C |
|
Humidity |
Operating: 10% ~ 90% RH Storage: 5% ~ 90% RH |
|
Emission |
FCC Class B CE mark Class B VCCI-B |
Supported LED indications:
|
|
LED indicator lamp |
Status |
Explanation |
|
1 |
FX Link/Act |
On |
Connection status display for fiber link. “ON” indicates that Fiber link is in correct connection. |
|
Blink |
Active status display of fiber link “Blink” indicates packet goes through Fx end. |
||
|
2 |
TX Link/Act |
On |
Connection status display for electric link. “ON” indicates that electric link is in correct connection. |
|
Blink |
Active status display of fiber link “Blink” indicates packet goes through Tx end. |
||
|
3 |
FDX/COL |
On |
Transceiver works in the full duplex mode. |
|
Off |
Transceiver works in the half duplex mode. |
||
|
4 |
PWR |
On |
Power is on and normal. |
|
5 |
SD |
On |
Fiber signal is detected. |
|
6 |
100M |
On |
Transfer rate of electric interface is 100Mbps. |
