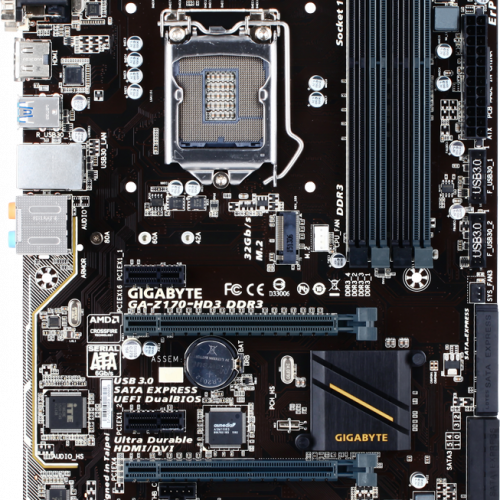

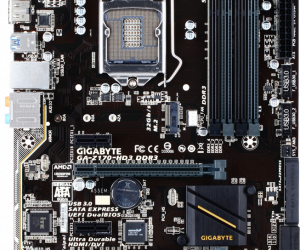

Gigabyte GA-Z170-HD3 DDR3 Desktop Motherboard
Brand : GIGABYTE ,
Model : GA-Z170-HD3 DDR3 Desktop Motherboard,
*Warrenty : 03 Year Replacemnt Without Burn & Broken,
Condition : Brand New
*Last Updated On :
4 years ago
*Status :
In Stock,
Home delivery service? : YES
Seller:
Location: Jatra-Bari-Dhaka
Rate this product!
Description
Back IO
Audio
- 6x Analog Audio Jack
Misc
- 1x PS/2
Network
- 1x RJ-45
USB
- 2x USB 2 Type-A
- 4x USB 3 Gen 1 Type-A
Video
- 1x DVI-D
- 1x HDMI Out
- 1x VGA
Internal Connections
Audio
- 1x SPDIF Out Header
Fans
- 4x 4-pin Fan Header
Misc
- 1x Parallel Header
- 1x Serial Header
- 1x TPM Header
- 1x Thunderbolt 5-pin Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
Storage
- 3x SATA Express
- 6x SATA3
USB
- 2x USB 2 Header
- 2x USB 3 Gen 1 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Realtek [Unknown] | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 3.0 x16 @ x16
- 1x PCI-E 3.0 x16 @ x4
- 2x PCI-E 3.0 x1 @ x1
- 2x PCI 5V @ 32-bit
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 |
Memory
This board has 4 slots with the following specifications:
| Slot Protocol | DDR3 |
|---|---|
| Slot Type | 240-pin DIMM |
| Maximum Speed | 3200 MHz |
| Maximum Capacity | 64 GB |
| Maximum Channels | 2 |
| ECC support | No |
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 2242, 2260, 2280, | PCI-E 3.0 x4, SATA3, |
Features
General Information
| Manufacturer | Gigabyte |
|---|---|
| Year | 2015 |
| Socket(s) | 1x LGA 1151 |
| Form Factor | ATX 199 x 305 mm |
| Chipset | Intel Z170 |
| Product Series | Gigabyte Ultra Durable |
Others
