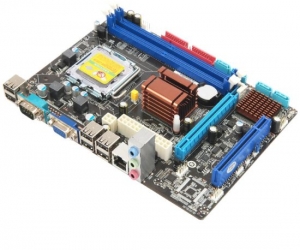

Esonic Genuine G41 DDR3 Motherboard
Location: Jatra-Bari-Dhaka
Rate this product!
Specification:
| Motherboard | ||
| Chipset | NorthBridge: Intel G41 Chipset SouthBridge: Intel ICH7 Chipset |
|
| Supported Processors | Supports Intel® CoreTM 2 Duo/ CoreTM 2 Quad Series processor in LGA775 package | |
| Max Memory | Support Dual channel DDR3 1333/1066 SDRAM (8GB Max) 2 * DDR3 DIMMs (240 pin/ 1.5V) |
|
| Onboard Audio | Chip integrated by Realtek ALC662, Supports 5.1-channel audio-out | |
| Onboard LAN | Onboard Realtek 8105E 100M LAN, Compliance with PCI 2.2 | |
Description :
Esonic G41 DDR3 Motherboard
CPU(Processor) Supports Intel® CoreTM 2 Duo/ CoreTM 2 Quad Series processor in LGA775 package
Chipset NorthBridge: Intel G41 Chipset, SouthBridge: Intel ICH7 Chipset
MemorySupport Dual channel DDR3 1333/1066 SDRAM (8GB Max),2 * DDR3 DIMMs (240 pin/ 1.5V)
Slots (- 1 * PCI Express x16 Slot- 1 * PCI Slot (Support 3.3V / 5V PCI bus Interface)
Storage- 2 * Serial ATA 2.0 devices,- 1 * IDEPort
Internal I/O Connectors
- 1 * 24-pin ATX Power Connetor
- 1 * 4-pin ATX 12V Power Connetor
- 1 * USB connector support additional 2 USB ports
- 1 * Front panel audio connector
- 1 * System Panel connector
Back Panel I/O Ports
- 1 * PS/2 Mouse
- 1 * PS/2 Keyboard
- 1 * VGA
- 1 * COM
- 1 * Parallel Port,Support SPP/EPP/ECP mode
- 4 * USB 2.0 / 1.1
- 1 * RJ45(LAN) Port
- 1 * 3 Audio jacks
BIOS EFI BIOS
LAN Onboard Realtek 8105E 100M LAN, Compliance with PCI 2.2
Audio Chip integrated by Realtek ALC662, Supports 5.1-channel audio-out
Form Factor - Micro ATX - 211*168 mm
01 Year Warranty
Features
- Model: Esonic G41 DDR3
- Intel G41 Chipset,Intel CH7 Chipset
- Memory Support DDR3 1333/1066 SDRAM,2 * DDR3 DIMMs
- Storage- 2
- Socket LGA775
