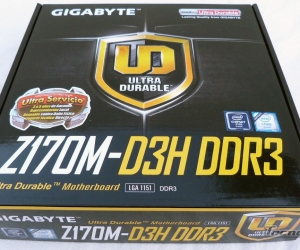

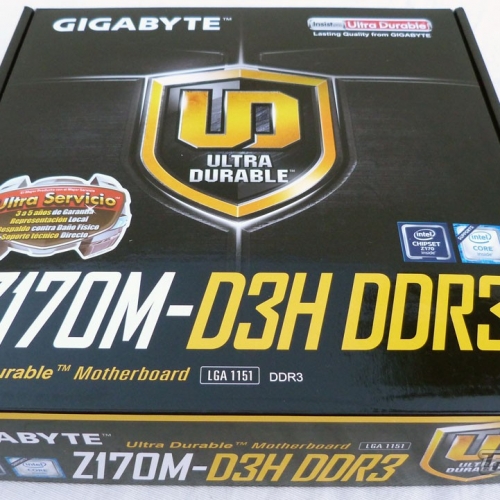

Gigabyte GA-Z170M-D3H DDR3 Intel® Z170 Chipset Motherboard

CPU

1. Support for 7th/6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
2. * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
3. L3 cache varies with CPU

Memory

1. 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
2. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
3. Dual channel memory architecture
4. Support for DDR3 3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
5. Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules
6. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor - Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
   * Support for HDMI 1.4a version.
