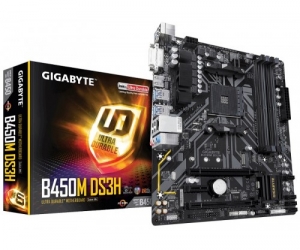

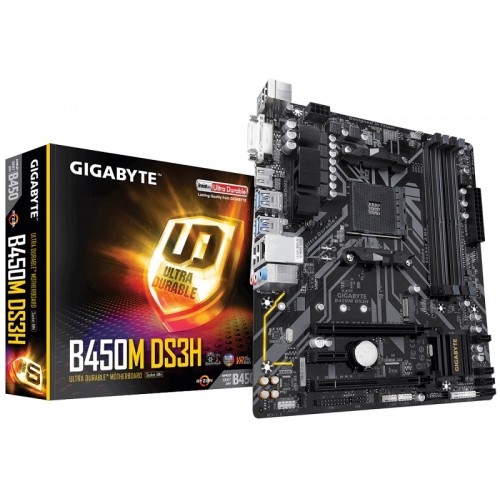

Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Brand : GIGABYTE ,
Model : B450M DS3H AM4 AMD Micro ATX Motherboard,
*Warrenty : 03 Years,
Condition : Brand New
*Last Updated On :
4 years ago
*Status :
In Stock
Seller:
Location: Jatra-Bari-Dhaka
Rate this product!
Description
Specification:
| Basic Information | ||
| Supported CPU | AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors |
|
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Mamory | 64 GB | |
| Graphics | ||
| Graphics | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2 |
|
| Max Shared Memory | 2 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
|
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
|
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
Description :
Gigabyte B450M DS3H AMD Micro ATX AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode and 3 PCIe slots. Considering the graphics, it will support maximum resolution of 4096x2160@60 Hz for HDMI and 1920x1200@60 Hz for DVI-D ports for Multiple Display. This High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting motherboard has the facility of USB 3.1 Gen 1, RGB Fusion supports RGB LED Strips in 7-Colors and Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software.
Features
Features
- Model: B450M DS3H
- CPU: AMD Ryzen
- Chipset: AMD B450
- Memory: 4 x DDR4, Max 64 GB
- 3 x PCI Express slots
Others
