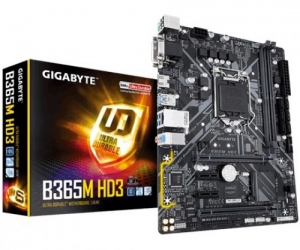

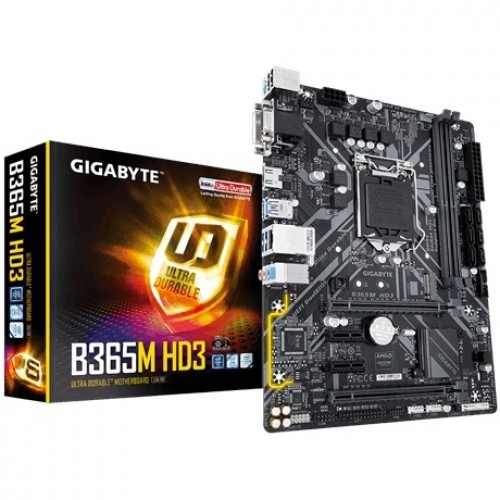

Gigabyte B365M HD3 9th Gen Motherboard
Brand : GIGABYTE ,
Model : B365M HD3 9th Gen ,
*Warrenty : 03 YEARS,
Condition : Brand New
*Last Updated On :
4 years ago
*Status :
In Stock
Seller:
Location: Jatra-Bari-Dhaka
Rate this product!
Description
Specification:
| Basic Information | ||
| Supported CPU | Support for 9th and 8th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package | |
| Chipset | Intel® B365 Express Chipset | |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 18.5cm | |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) | |
| Memory | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. |
|
| Maximum Mamory | 32 GB | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
|
| Max Shared Memory | Maximum shared memory of 1 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| USB (s) | 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | 1 x RJ-45 port Realtek GbE LAN chip (10/100/1000 Mbit) |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready |
|
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper |
|
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Realtek 8118 Gaming LAN bandwidth Control Utility | |
Description :
Gigabyte B365M HD3 9th Gen Motherboard
The Gigabyte B365M HD3 Micro ATX ultra durable motherboard compatible with Intel 9th and 8th gen core i3, i5 i7 and i9 processor with supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface. Considering the graphics, it will support integrated Intel HD Graphics having 1GB shared graphics memory with max resolution of 1920 x 1200 @ 60 Hz DVI-D & D-Sub port and 4096x2160@30 Hz of HDMI ports. This latest motherboard has the facility of USB 3.1 Gen 1 ports, USB 2.0/1.1 ports and Intel Optane Memory Ready. For extreme level of gaming it has GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2 and Smart Fan 5.
Features
Features
- Supports 9th and 8th Gen Processor
- Hybrid Digital PWM Design
- RAM Slot-2 x DDR4 DIMM
- PCI Slot- 4 x PCI Express
