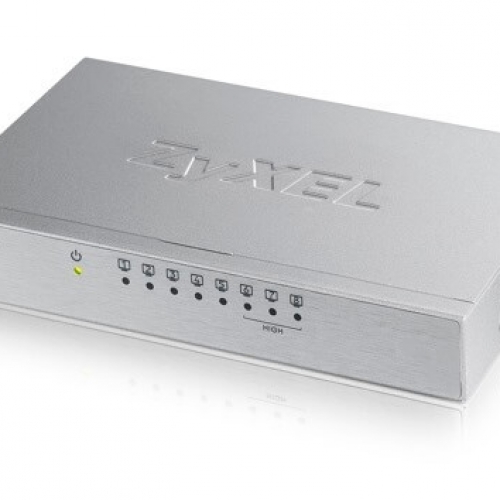

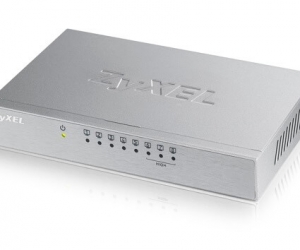

ZYXEL 8-Port ES-108A v3 Desktop Fast Ethernet Switch

System Specifications

• Standard
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3 Nway auto-negotiation
  • IEEE 802.3x full duplex operation and flow control
  • IEEE 802.3az Energy Efficient Ethernet
• Performance
  • Data transfer rate (half duplex/full duplex):
    • Ethernet: 10/20 Mbps
    • Fast Ethernet: 100/200 Mbps
  • MAC address table: 1 K
  • Memory buffer: 56 KB
  • Switching fabric (non-blocking): 1.6 Gbps
• Features
  • Auto-MDI/MDIX in all ports
  • Transmission method: Store-and-forward architecture
  • Port-based QoS support

Hardware Specifications

• Interface
  • Eight 10/100 Mbps Ethernet ports
• QoS Ports
  • Three high-priority QoS ports
• LED Indicator
  • PWR: Power
  • Per port: Link/Activity
• Power Supply
  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 5 V DC, 1 A
• Power consumption (DC side): 1.52 watt max.

• Item dimensions (WxDxH): 155 x 85 x 26 mm (6.1" x 3.3" x 1.0")
• Item weight: 304 g (0.67 lb.)
• Packing dimensions (WxDxH): 161 x 90 x 95 mm (6.3" x 3.5" x 3.7")
• Packing weight: 477.5 g (1.05 lb.)

• Operating Environment
  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10% to 90% (Non-condensing)
• Storage Environment
  • Temperature: -40°C to 70°C (-40°F to 158°F)
  • Humidity: 10% to 95% (Non-condensing)

Package Contents

• Ethernet switch
• Power adapter
• User’s guide
