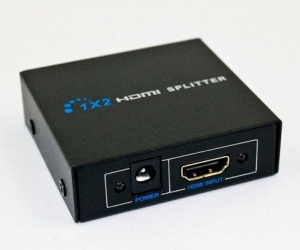

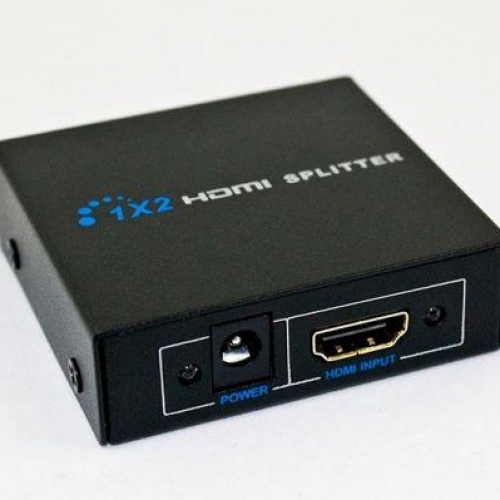

HDMI Splitter 1 in 2 out-Black
Location: Elephant-Road-Dhaka
Rate this product!
HDMI Splitter 1 in 2 out-Black
- HDMI 1.4 V met 4 K x 2 K
- distributes 1 hdmi source to 2 HDMI Displays at the same time.
- supports all mandatory and different optional 4k formats
- supports High Definition Resolutions: 3840x2160 @ 30Hz, 3D 1080p @ 24HZ, 1080P @ 60Hz,
- 720 p/1080i @ 120Hz
- compatible blue-ray, PS3 media format, fully support 3D, 4K display
- EIDI Duration: 4 seconds
1x2 HDMI Splitter 1 in 2 HDMI Splitter 4K x 2K / 30Hz HDMI Splitter 1.4 with DC5V Power Supply (1 INPUT 2 OUTPUT, 4K102)
Instruction:
1x2 HDMI splitter distributes 1 HDMI source to 2 HDMI displays simultaneously.
This 1.4 v Hdmi Splitter supports all required and various optional 4 k formats described in HDMI 1.4 specifications, maintains sharp HDTV resolution up to 4 kx 2 k full HD and 3D. It offers HD video solutions for supper market, shopping mall; HDTV, STB, DVD and projector factory;data control center; conference rooms; education and training; luxury home; home theaters etc.
SGEYR Metal Case4Kx2K HDMI Splitter 1 input 2 output, 1x2 HDMI Splitter 4K x 2K / 30Hz hdmi splitter 1.4 with DC5V Power Supply
CHARACTERISTICS:
1) HDMI 1.4 V met 4 K x 2 K
2) distributes 1 hdmi source to 2 HDMI Displays at the same time.
3) supports all mandatory and different optional 4k formats
4) supports High Definition Resolutions: 3840x2160 @ 30Hz, 3D 1080p @ 24HZ, 1080P @ 60Hz,
720 p/1080i @ 120Hz
5) compatible blue-ray, PS3 media format, fully support 3D, 4K display
6) EIDI Duration: 4 seconds
SGEYR Metal Case4Kx2K HDMI Splitter 1 input 2 output, 1x2 HDMI Splitter 4K x 2K / 30Hz hdmi splitter 1.4 with DC5V Power Supply
|
SPECIFICATION |
|
|
Name of the product |
HDMI Splitter |
|
Signal Inputs / Output |
1 entry. .. 2 exits |
|
HDMI Connector |
Type A 19 pin female |
|
HDMI Version |
HDMI 1.4 V + HDCP1.3 (compatibel HDMI 1.3/1.2/1.1/1.0) |
|
Support video format |
DTV/HDTV: 480i/576i/480 p/576 p/720 p/1080i/1080 p/3D/ 3840x2160 video |
|
Support audio format |
DTS-HD Master Audio 、 Dolby true-HD etc. |
|
Support video color format |
Xv-YCC / deep color up to 48bit |
|
Max baudrate |
10.2Gps |
|
Frequency |
Up to 340 MHz |
|
Max. cable extension |
15 meters through 28 AWGHDMI cable; 20 meters through 26 AWGHDMI cable |
|
Power consumption |
10 watt (Maximum) |
|
Input/output DDC Signaal |
5 volt p-p (TTL) |
|
Input/Output TMDS Signaal |
0.5 ~ 1.5 Volt p-p |
|
Max working current |
1.4A |
|
Power adapter format ... Input |
AC (50 HZ, 60 HZ) 100 V-240 V; Output: DC5V |
|
Operating temperature range |
(-15 to + 55 degrees Celsius) |
|
Humidity range |
5 to 90% RH (No Condensation) |
|
Size |
65x61x20 m |
|
NW. |
95g |
Packing List:
1. Main Adapter-1x2 HDMI Splitter 4 K
2. DC5V Power supply
3. Manual
