Orignal Tech DS0150-SHELL (DSO150) Digital Oscilloscope With Housing Case Box DIY kit-White

Orignal Tech DS0150-SHELL (DSO150) Digital Oscilloscope With Housing Case Box DIY kit-White

• Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display can be used as ARM test development board.
• Circuit is simple and the kit is inexpensive
• Characteristics of indicators:
• Supply voltage: DC 9V
• Maximum real-time sampling rate: 1Msps
• Accuracy: 12Bit
• Sampling buffer depth: 1024 bytes
• Analog bandwidth: 0 - 200KHz
• Vertical Sensitivity: 5mV / Div - 20V / Div
• Adjustable vertical displacement, and with instructions
• Input impedance: 1MΩ
• Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
• Coupling modes: DC / AC / GND

Note:

This is a DIY kit, need to have some basic electronic activity and ability.

SMD soldered version, operation is more easier.

Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display can be used as ARM test development board.

Circuit is simple and the kit is inexpensive

Characteristics of indicators:

Supply voltage: DC 9V

Maximum real-time sampling rate: 1Msps

Accuracy: 12Bit

Sampling buffer depth: 1024 bytes

Analog bandwidth: 0 - 200KHz

Vertical Sensitivity: 5mV / Div - 20V / Div

Adjustable vertical displacement, and with instructions

Input impedance: 1MΩ

Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)

Coupling modes: DC / AC / GND

The horizontal time base range: 10μs / Div - 50s / Div (1-2-5 progressive manner)

With automatic, regular and one-shot mode, easy to capture the moment waveform

Available rising or falling edge trigger

Adjustable trigger level position, and with instructions

Observable previous trigger waveform (negative delay)

Can freeze at any time waveform display (HOLD function)

Comes 1Hz /3.3V square wave test signal source

Package included:

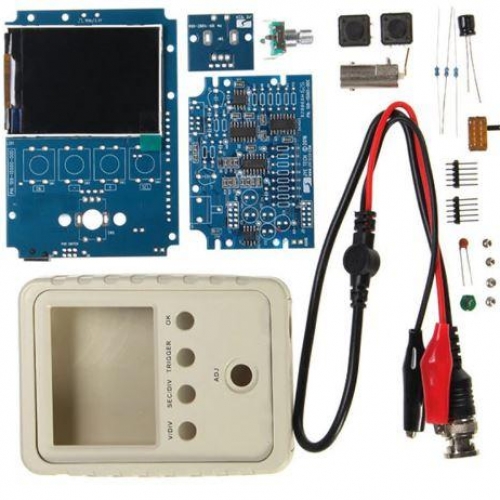

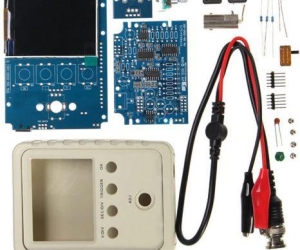

1 x DIY DS0150 Digital Oscilloscope Kit
