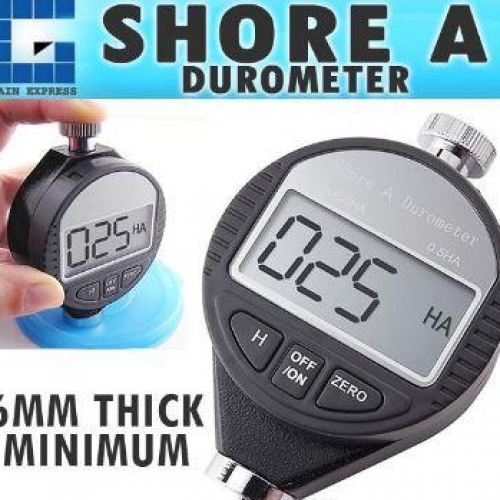

Digital Durometer Shore hardness Digital Hardness Tester Hardness Meter Shore A for Plastic leather rubber multi-resin wax-Black

• Suitable for Low, Medium and Hard Hardness Rubber and Plastics such as Thermo Plastics, Flooring and Bowling balls
• Wide measuring range: 0 ~ 100 HD
• Data Hold function
• Zero button for self calibration
• Battery included
• WithCE Marking, conforms with European health & safety requirement
• TheDigital Shore D Durometercarry out the provision of GB/T531-99,GB2411-80, HGT 2489-93 and JJG304-2003.

0-100HD Shore D Hardness Tester Meter Digital Durometer Scale for Rubber, Tire

The hardness of Rubber and Plastics is their comprehensive performance reaction. The Digital Shore D Durometer is a kind of sophisticated measurement tool for measuring the hardness of Rubber and Plastics.

This Shore D Hardness Meter is ideal for measuring hardness of Hard Hardness Rubber and Plastics such as Thermo Plastics, Flooring and Bowling balls. It has wide measuring range from 0 ~ 100 HD, Data Hold function and zero button for self calibration.

The Digital Shore D Durometer carry out the provision of GB/T531-99,GB2411-80, HGT 2489-93 and JJG304-2003.

Suitable for Low, Medium and Hard Hardness Rubber and Plastics such as Thermo Plastics, Flooring and Bowling balls

Wide measuring range: 0 ~ 100 HD

Data Hold function

Zero button for self calibration

Battery included

With CE Marking, conforms with European health & safety requirement

The Digital Shore D Durometer carry out the provision of GB/T531-99,GB2411-80, HGT 2489-93 and JJG304-2003.

Sharp cone point (SR 0.1mm), 30° Included Angle

Thickness of measured sample : > 6mm (no more than 3 layers)

Measured Area cannot be less then pressure edge 15mm

LCD Display : 4 digits, 40 x 18 mm (1.57 x 0.71 inch)

Measuring Range / Graduation : 0~100 HD

Indentor Running : 0-2.5mm

Indentor press on telos : A, C type 0.55-8.06N, D type 0-44.5N

Resolution : 0.5 HD

Power Supply : 1 x SR44 button cell battery (included)

Item Size : 87 x 56 x 25mm (LxWxD) (3.43 x 2.2 x 0.98inch)

Item Weight : 136g (4.79oz)

Set includes:

1 x Shore D Hardness Meter

1 x SR44 Button Cell Battery (installed)

1 x Instruction Manual

Standard Factory Package
