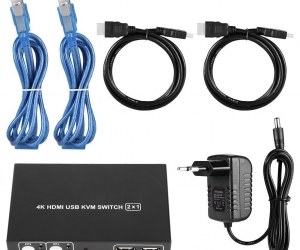

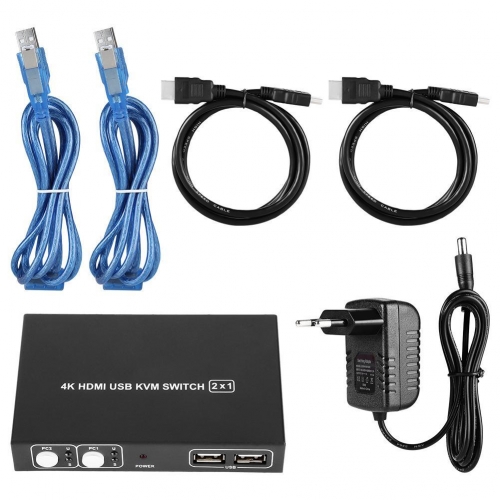

2 Port HDMI KVM Switch With The USB/HDMI Cable Support 3D 4K*2K/3840*2160 30Hz and USB2.0-Black

 2 Port HDMI KVM Switch With The USB/HDMI Cable Support 3D 4K*2K/3840*2160 30Hz and USB2.0-Black

• The four-way HD video source choose USB interface to realize four free switch;
• Support video resolution max up to 4Kx2K@30Hz;
• Support keyboard and mouse control;
• Compliance with HDMI 1.4 standard;
• Adaptive EDID/HDCP decryption, able to adapt to a variety of complex application environment;
• Hot key switch, convenient and quick(Scroll Lock + Scroll Lock+ 1,2)
• High compatibility, can auto-match source and display device;
• Built-in automatic adjustment system, make the image smooth, clear and stable;

Standards

HDMI 1.4；HDCP 1.2

Maximum pixel clock

225MHz

Maximum data rate

10Gbps

Resolution range

Up to 4Kx2K@30Hz, 3D, 1920*1080@60Hz

Connector

HDMI-A Interface

Impedance

100Ω

HDMI Cable Range

<5M( Resolution: 1920*1080@60Hz)

USB

Interface protocols

USB2.0

PC input interface type

USB-B

Output interface type

USB-A

Other

Power supply

The power adapter: DC 5V

Power dissipation

MAX 3W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

230*74*25mm

The warranty

1 year free warranty
The four-way HD video source choose USB interface to realize four free switch;
Support video resolution max up to 4Kx2K@30Hz;
Support keyboard and mouse control;
Compliance with HDMI 1.4 standard;
Adaptive EDID/HDCP decryption, able to adapt to a variety of complex application environment;
Hot key switch, convenient and quick(Scroll Lock + Scroll Lock+ 1,2)
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system
Simple to install, plug and play

Product Application
