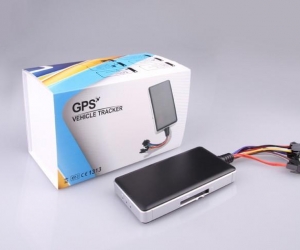

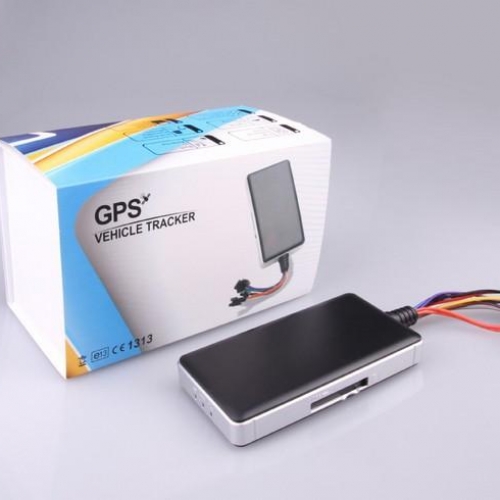

Concox GT06N gps vehicle tracking with stop engine/geo fence/ internal antenna-Black

 Concox GT06N gps vehicle tracking with stop engine/geo fence/ internal antenna-Black

• There are three ways that you may get the real-time position of the vehicle:
• SMS: You may get the coordinate, or a Google Map link.
• Tracking website:You may view directly on the Google Map
• APP:You may view directly on the Google Map
• Tele-cut off(Petrol/ Electricity)
• When the GPS is located and the speed of the vehicle less than 20 km/hour, you may send the command through SMS or Tracking website to stop the vehicle.
• Voice Monitoring
• There are two ways that you may hear the real-time voice in the vehicle. 1)Dial to the device over 10s,it will enter into the voice monitoring status 2)Send a command to the device, it will call back.
• SOS emergency call
• Among the accessories, there is a SOS button. It can be attached to anywhere you can reach. In the emergency cases, you may press it for over 3s, then the preset SOS numbers will get the Alarm message and call.

Weight

96g

Dimensions

105.8 (L) * 54.5 (W) *16.4 (H) mm

Working voltage / current

9-36vDC / 90mA

Operating temperature

-25 Degree Centigrade – 60 Degree Centigrade

Operating humidity

5% to 95% non-condensing

LED indicator

Three LED indicator: GPS-blue, GSM-green, Power-red

GSM

850 / 900 / 1800 / 1900 MHz

GPRS

Class12, TCP/ IP build in GSM Module

GPS

MT3326

GSM antenna

Built-in quad band

GPS antenna

Built-in GPS high gain ceramics patch antenna.

GPS Channels

20

Tracking sensitivity

-159dBm

Acquisition sensitivity

-144dBm

Locating time cost

Hot start: < 2 sec(open sky)

Warm start: < 15 sec

Cold start: < 38 sec(open sky)

LED indicator

Three LED indicator: GPS - Blue, GSM - Green, Power - Red

Battery

3.7vDC / 450mAh

Monitoring range

5M

Certifications

E - Mark, CE
There are three ways that you may get the real-time position of the vehicle:

SMS: You may get the coordinate, or a Google Map link.

Tracking website:You may view directly on the Google Map

APP:You may view directly on the Google Map

Tele-cut off(Petrol/ Electricity)

When the GPS is located and the speed of the vehicle less than 20 km/hour, you may send the command through SMS or Tracking website to stop the vehicle.

Voice Monitoring

There are two ways that you may hear the real-time voice in the vehicle. 1)Dial to the device over 10s,it will enter into the voice monitoring status 2)Send a command to the device, it will call back.

SOS emergency call

Among the accessories, there is a SOS button. It can be attached to anywhere you can reach. In the emergency cases, you may press it for over 3s, then the preset SOS numbers will get the Alarm message and call.

Geo-fence Mode

You may set an area through SMS or tracking website, when the vehicle gets out/in of the area, you will get a SMS alarm message.

History Report

You may know where you vehicle has been on a certain day since you installed our Concox GT06N. It will keep all the data in the tracking website.

Discreet Use

The tracker is small and lightweight and can be placed virtually anywhere. Being smaller than a cellphone, it can fit discreetly into the glove box, middle console, or even under the seat!
