Features:
1) wireless, infrared detector, activated
2) accurate identification, 5S owner identification signaling delay
3) range of multi-channel wireless remote control
4) adjustable mounting block
5) includes 2 direct infrared remote controls; please use it directly with the sensor
Specifications:
1) sound level alarm: 105dB (Decibels)
2) remote control distance: about 0-4 m (open ground)
3) Detection range: 0-4 m distance
4) Operating voltage: direct current 6 V
5) Motion detection power from 4 AA batteries (Not included)
6) Size: you can see the details in the pictures
7) Color: white
Installation Requirements:
1) The warning device on the control panel of the infrared range of protection must be able to look straight, there can be no obstacles.
2) installation of warning devices near an infrared heat source, such as a hot and cold air outlet, should be avoided,
Air conditioning, heater, cooler, etc., to avoid a straight door.
3) there should be a 10-30 degree angle between the Wall and the remote control of the infrared warning devices;
You can adjust the detection distance according to the actual mounting angle.
4) Warning device as a remote control infrared lens in human lateral movement with respect to the most sensitive
Infrared detection and vertical motion sensitivity are poor, so when installing you should pay attention to the angle of inclination
Between horizontal and high detectors, which are of great importance to shock protection.
How to use:
1) Turn on the power switch, the power indicator Twinkle 1 time, said that the self test is normal.
2) 10 s waiting detector, you must leave your detective zone at 10 s
3) after 10 s, if there is someone who comes to the detective area, it will delay for 5S to give you the opportunity to show that
You are the owner with the remote control. After 5S, he will be based on 30s if he does not receive any signal.
4) you can close the buzz using the remote control
Cross Stitch Package Includes:

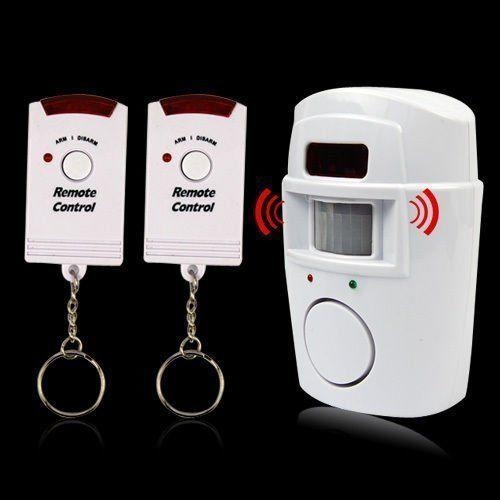

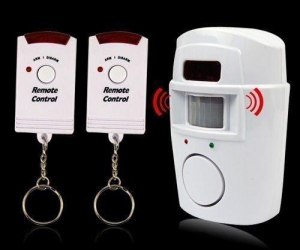

1 x infrared detector
2 x Remote Controls
1 x Adjustable mounting block
