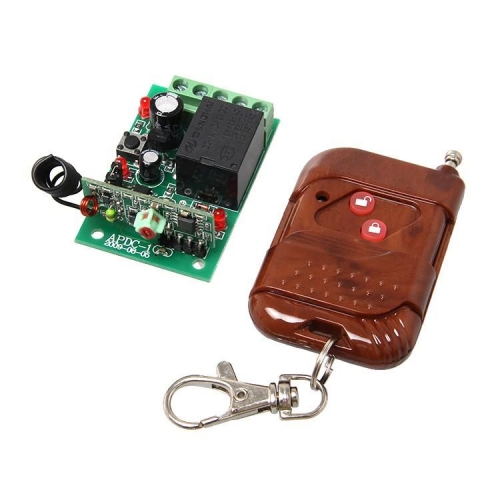

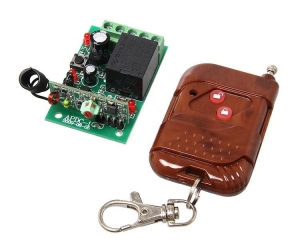

Single Channel RF Wireless Relay Remote Control Module-Orange

Single Channel RF Wireless Relay Remote Control Module-Orange

• This receiver controller is of high confidentiality and large storage;
• it can store information of as much as 30 remote controllers
• This receiver can receive all kinds of fixed-code,
• learning code and other high-bit-rate remote controller regardless of the oscillation resistance.

Product model:KGS-B10

Operating voltage:DC12V

Operating frequency:315MHZ

Contact capacity:10A/250VAC; 10A/30VDC

Receiving sensitivity:>-105dB

Remote control distance:200 meters (open space without interference) this distance for the open space without interference of the theoretical distance,

In use will be reduced according to different environmental interference and partition. Generally nominal

Distance of about 10%-50%.

Control way:1 normally open (normally closed) contact

Coding type:Learning code; space separation

Learning methodSwitch on the power indicator light for 3 seconds, the indicator light is off, press a learning button, the indicator light is lit, according to the remote control button lights off, learning success.

Code cleaning method:Switch on the power indicator light for 3 seconds, put down after holding the learning button does not put the indicator light up, 8 seconds after the lights off, the success of the code.

Total open learning method:Connect the power indicator lights up, immediately press 2 times learning button, indicator light 2 times out and lights and other lights out, according to a study button, the indicator light is on, press the remote control button, indicator lights, learning success.

Total study method:Connect the power indicator lights up immediately, according to a study button lights off and lights and other lights extinguished by a learning button, indicator lights, press the remote control button, indicator lights, learning success.

Operation modeSelf lock / Interlock / point user free choice. (for the welding of T for the self locking type, when the welding M for the point type, M and T are not welded to the interlocking type)

Interpretation of the meaning of self lock / Interlock / point:

Mutual lock: hand according to the corresponding remote control of a key, the corresponding relay is connected, and then press another remote control key; relay off.

Non lock, point move: the hand according to the remote control key, the corresponding relay is switched on, release the remote control key; the corresponding relay off.

Self locking: according to a remote control key, the relay is connected, and then press the remote control key, the relay is disconnected.
