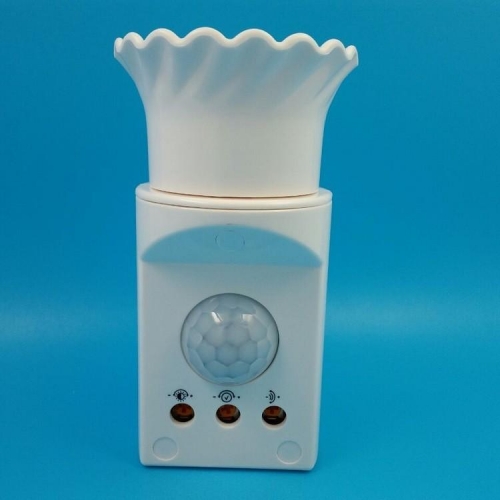

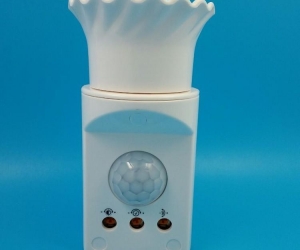

Pir sensor human body infrared motion switch plug-White

 Pir sensor human body infrared motion switch plug-White

• Super saving electricity, power consumption0.08 degrees per year
• Non-contact, simple installation
• Sensitivity adjustable( can bright during the day)
• Delay time adjustable
• Adjustable sensing range
• Strong anti-jamming capacity, more safe and reliable

The company for customers to design various types products of electronic, provide solutions, the price is cheap, first-class service.

Adjustable body induction plug operation instruction

Model:JL-020

1. Features:

Our products adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically. (light on), when they leave light will delay and shut down automatically.

1,Super saving electricity, power consumption0.08 degrees per year

2,Non-contact, simple installation

3,Sensitivity adjustable( can bright during the day)

4,Delay time adjustable

5,Adjustable sensing range

6,Strong anti-jamming capacity, more safe and reliable

Components have been doing rigorous testing and screening, before delivery we have been doing aging test, please be assured to use

2. Specification:

Working power:AC170V~250V,50/60HZ

Load power:LED≤30W,Energy saving≤80W,Incandescent≤100W

Standby power:0.0088W

Delay time:10~300second

illumination:5LUX~5000LUX

Induction distance:2~12m

Sensor angle:110~140degree

3. Application

Corridor,toilet,basement,warehouse,garage,and other places of automatic lighting, (Suitable f

4. Attention

1,To turn off power when installation, must be installed by professional

2,This switch can work normally after 45 seconds when electricity, it is infrared sensor preheat time

3,Do not overload to use.
