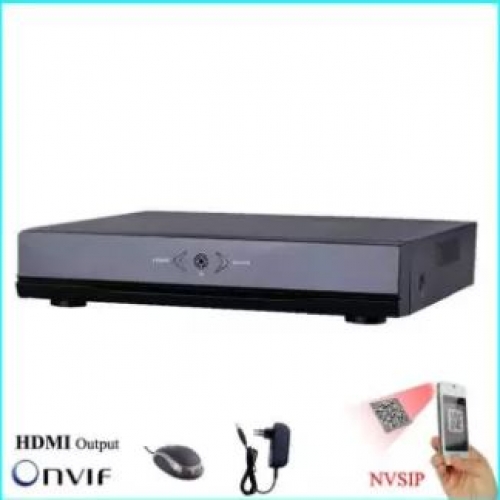

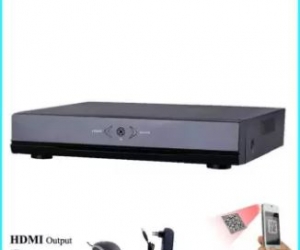

NVR 16 Channel full HD Onvif 2.4 H.265 P2P for IP Camera Support Any Brand IP Camera -Black

 NVR 16 Channel full HD Onvif 2.4 H.265 P2P for IP Camera Support Any Brand IP Camera -Black

• Support cloudsee, alarm information pushed to your phone and other functions;
• Support search and backup of log, recording, picture and so on;
• Support various mobile monitoring (IOS, android);
• Support VGA, HDMI HD output simultaneously;
• Support H.265+ H.264 video formats;
• Support multi- languages；
• 1 SATA HDD, up to 6 TB

JVS-ND6616-HC

Audio and Video

IP Camera Input

16 Channel

Audio Input/ Output

1 Channel Output, RCA; Audio output support HDMI

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 1024×768/1280×1024/1280×800/1440×900/1920×1080@60/3840×2160@30

VGA: 1024*768,1280*800,1280*1024,1440*900,1920*1080@60

Decoding Capacity

1ch@ 5MP/4MP/1080P/960P/720P 25fps,4ch@1080P 25fps,16/9/8ch @ D1/CIF & etc

Multi-screen Display

1/4/8/9/16

OSD

Camera's name& Time, Recording, Alarm Detecting, Remote connection, Volume ,Channel Number

Recording

Compression

H.265/H.264

Resolution

16ch 5MP/4MP/1080P/960P/720P

Record Mode

Manual, Schedule, Motion Detection, IVP

Video Detection and Alarm

Trigger Events

Recording, Snapshot, PTZ, Voice ,E-mail, Client, Buzzer

Video Detection

Motion Detection, No Video Detection ,IVP

Playback and Backup

Sync Playback

2ch5 MP/ 4MP,4ch 1080P/960P/720P

Search Mode

Time /Date, Schedule, Motion Detection

Playback Function

Day View, Hour View, Back Step, Rewind ,Pause, Play, Fast Forward, Slow , Step, Full Screen, Snap, Sound On/Off, Zoom

Backup Mode

USB Device/Network

Network

Interface

1 RJ-45 port (10/100Mbps)

Network Function

TCP/IP,DHCP,UDP,SMTP,NTP

Smart Phone

iPhone, Android

Interoperability

ONVIF 2.4

Storage

SATA

1 SATA interface

Capacity

up to 6TB for each disk

General

Power Supply

12V DC

Consumption(without hard disk )

≤ 10 W

Working Temperature

-10 ℃ ~ +55 ℃ (+14 ℉~ + 131 ℉)

Working Humidity

10 % ~ 90 %

Dimensions

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Weight(without HDD)

≤ 1.2kg (2.6 lb)
