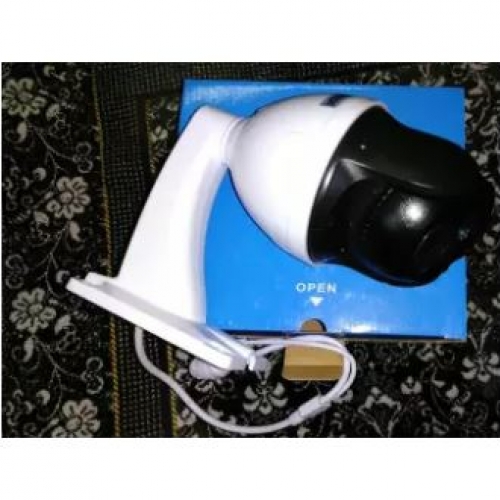

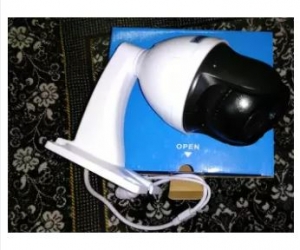

PTZ IP CAMERA OUTDOOR 10X OPTICAL ZOOM FULL HD Support Any Brand NVR-White

PTZ IP CAMERA OUTDOOR 10X OPTICAL ZOOM FULL HD Support Any Brand NVR-White

• Adopt high performance 1/1.8" SONY CMOS.
• Support dual stream compression technology,up to 2MP super HD image effect.
• Rotate 360°in horizontal direction，driven by exact engine，operate stably with Precise position-setting.
• The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance.
• Built-in OSD. Several control protocols are compatible and Baud rate is adjustable;
• Vertical 90°continuous monitoring after auto reversing 180°.

Parameter:

Model No .

CSJ-NH4RP-200DH

Signal model

PAL/NTSC

Image sensor

1/1.8" SNOY CMOS
Effective pixel

1920*1080

Horizontal resolution

1080P Lowest illumination
Minimum illumination

Color to B/W,Color:0.1Lux,B/W:0.01Lux

S/N ratio

>60dB(Enhanced)

Backlight compensation

On/Off

White balance

Auto

Electronic shutter

PAL:1/25~1/100000s NTSC:1/30~1/100000s

Focus length

5~50mm

Optical focus

10X

Focus

Auto / Manual / Push Auto , the use of high-performanceDSP

to realize complete digit and ultra-high speed focus function

Presets

255

IR distance

40m

Patrol track

4groups, each can record 200 actions

Cruise track

Total 30 presets can join cruise, can setting the

presets' residence time

Other scan

Support Horizontal scan, deuce area scan, scan random

Rotation range

Horizontal 360°unlimted rotation, Vertical 90°,auto reversal

Rotation speed

Horizontal & Vertical Min 0.01°,Max 200°/S

Video compression

H.264 Main Profile encoding ;

MJPEG / JPEG Baseline encoding

Audio compression

G.711, G.726

Primary stream

1920 * 1080 , 25fps

Secondary stream

D1，VGA，640*360,568*320,CIF，QVGA，320*192

Video bit rate

32Kbps-16Mbps continuously adjustable,

support CBR / VBR

Network protocol

TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、

DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP

ONVIF support

Support

Power supply

DC12V/2A

Work environment

-20°C~+50°C (select temperature control accessories), <95%RH
