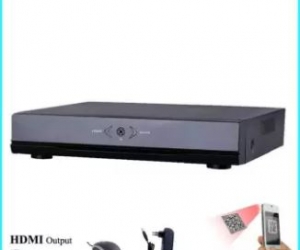

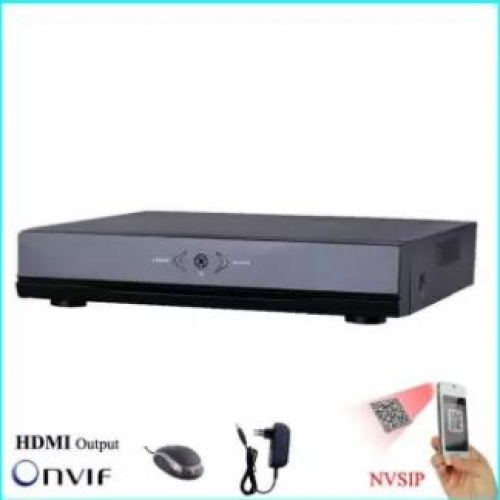

CCTV 8 channel NVR Onvif H.265 for IP Camera System Support Any Brand IP Camera-Black

 CCTV 8 channel NVR Onvif H.265 for IP Camera System Support Any Brand IP Camera-Black

• Support cloudsee, alarm information pushed to your phone and other functions;
• Support search and backup of log, recording, picture and so on ;
• Support various mobile monitoring (IOS, android);
• Support VGA, HDMI HD output simultaneously;
• Support H.265+ H.264 video formats;
• Support multi- languages；
• 1 SATA HDD, up to 6 TB

Audio and Video

IP Camera Input

8 Channel

Audio Input /Output

1 Channel Output, RCA; Audio output support HDMI

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 1024*768,1280*800,1280*1024,1440*900,1920*1080@60

VGA: 1024*768,1280*800,1280*1024,1440*900,1920*1080@60

Decoding Capacity

1ch@ 5MP/4MP/1080P/960P/720P 25fps,4ch@1080P 25fps,8ch D1/CIF & etc

Multi-screen Display

1/4/8/9

OSD

Camera's name& Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number

Recording

Compression

H.265/H.264

Resolution

8ch 5MP/4MP/1080P/960P/720P

Record Mode

Manual, Schedule, MD

Video Detection and Alarm

Trigger Events

Recording, Snapshot, PTZ ,Voice ,E-mail, Client ,Buzzer

Video Detection

Motion Detection, No Video Detection

Playback and Backup

Sync Playback

1ch5 MP,2ch 4MP,4ch 1080P/960P/720P

Search Mode

Time /Date, Schedule, Motion Detection

Playback Function

Day View, Hour View ,Back Step ,Rewind ,Pause, Play, Fast Forward, Slow , Step ,Full Screen, Snap ,Sound On/Off, Zoom

Backup Mode

USB Device/Network

Network

Interface

1 RJ-45 port (10/100Mbps)

Network Function

TCP/IP,DHCP,UDP,SMTP,NTP

Smart Phone

iPhone, Android

Interoperability

ONVIF 2.4

Storage

SATA

1 SATA interface

Capacity

up to 6TB for each disk

General

Power Supply

12V DC

Consumption(without hard disk )

≤ 10 W

Working Temperature

-10 ℃ ~ +55 ℃ (+14 ℉~ + 131 ℉)

Working Humidity

10 % ~ 90 %

Dimensions

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Weight(without HDD)

≤ 1.2kg (2.6 lb.)
