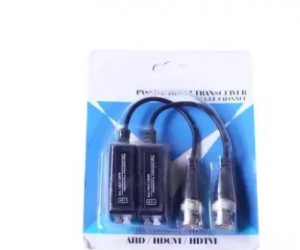

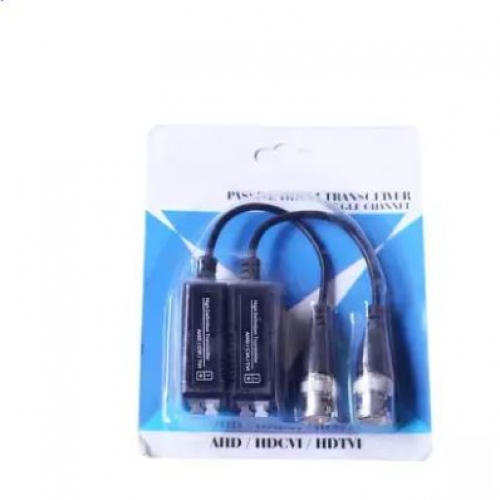

CCTV Balun 1080P TVI CVITVI AHD transmitter and transceiver -Black

CCTV Balun 1080P TVI CVITVI AHD transmitter and transceiver -Black

• * Mini video surveillance BNC Video Balun : Compatible with traditional analog CVBS / AHD / TVI / CVI-signal.
• * Support for all video devices : Such as camera, monitor, recorder and recorder, etc.
• * Easy installation : Transfer of video system via standard cable utp cat5 system instead of traditional coaxial cable.
• * Use existing wiring : Are there already structured cabling systems? Simply plug the balun into each end of the cable, start to transmit your signal.
• * Reduction in the cost and labor of the cable: The price for Cat 5 cable is much less than the traditional coaxial cable for video surveillance, saving 10-20% of the wired costs for each video surveillance system. Cables utp physically less coaxial alternatives, more cameras through a smaller diameter, it is extremely easy to install and terminate.
• * Better EMI and RFI jamming failure than coaxial cable.

You agree to the HDTVI Coaxial Kit in UTP CAT5 / 5e / 6 Balun Passive Adapter. This set of transceivers will allow TVI 720 P & 1080 P to transmit HD video signal up to 200 m (650 ft) through the cat 6 cat 5e cable and 5 will be slightly less in the distance range. You will need a pair for each cable run.

Options

Physical properties

Dimensions (L * W * H)

13.7 * 11.6 * 3 mm

In the form of shells

Abs

Colour

The black

Nw

60 grams

Stability

MTBF

> 10,000 h

The environment

Working temperature.

-10-55 degrees

Storage temperature

-20-70 degrees

Humidity

0-95% (not condensation)

Properties

Signal transmission

1 channel

Transmission distance

AHD / CVI: 300 m (max)

Twi: 200m (max)

Category Type

UTP CAT5 / 5e / 6

Properties and video transfer port

Coaxial video connector

BNC-M

Twisted pair video connector

Press terminal

Compatible format

AHD / HDCVI / HDTVI

Resolution

720p / 1080p

Anti interference

> 60dB

Protection

ESD

1A contact with electricity discharge 3

1b air flow at level 3

Pro: IEC61000-4-2

Coaxial Cable Connector

2KV (common code) Per:

UTP cable connector

2KV (different code), 4kV (common code code), Per:

Resistance

Bnc

75 ohm

Cable upt

100 ohm
