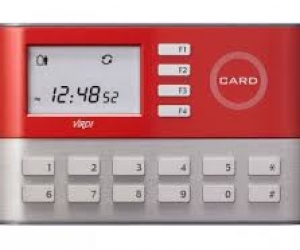

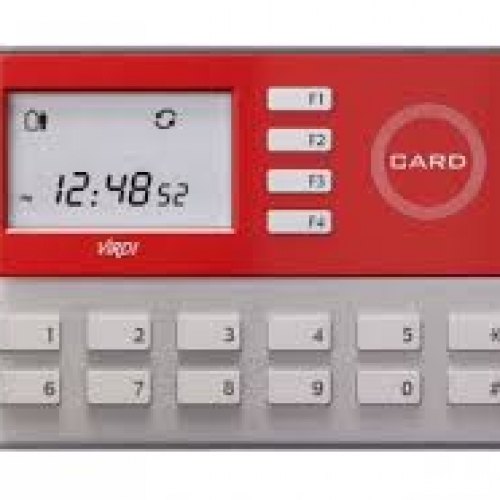

AC1000RF Time Attendance and Access Control – Red

AC1000RF Time Attendance and Access Control – Red

• RFID ACCESS CONTROL AND TA TERMINAL
• User: 10000 (Card), Log: 20000
• Communication: TCP/IP, RS485, RS232
• Basic Attendance Softwre: Free by Virdi
• Speciality: Good Design Award
• CPU : 400MHz DSP
• Certificates : ROHs,CE,FCC

AC1000RF Time Attendance and Access Control – Red

Item Virdi AC-1000 CPU 32 Bit RISC CPU Cards capacity Default (2M) : 10,000 / Option (4M) : 20,000 Log Capacity 20,000 Cards Supported 125 Khz Proximity (AC-1000RF) 13,56 MHz Smart Card (AC-1000SA) LCD Display 128 × 64 Graphic Display LCD Communication TCP/IP, 2 RS-232C, 1 Wiegand, 1 RS-485 Lock Control 2 ports Control Motor Lock or 1 port Control EM/Strike/Deadbolt Lock Supply voltage Max DC 12V / 450mA Operation Environment -20 ~50° / Lower than 90% RH (Non-condensing) Verification time (1:1) 0.5 sec Application Access Control, Time and Attendance Dimensions 140(W) X 89(H) X 28(D) mm.
