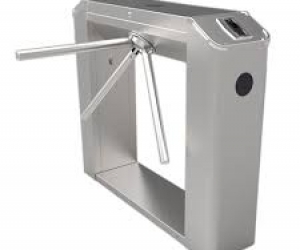

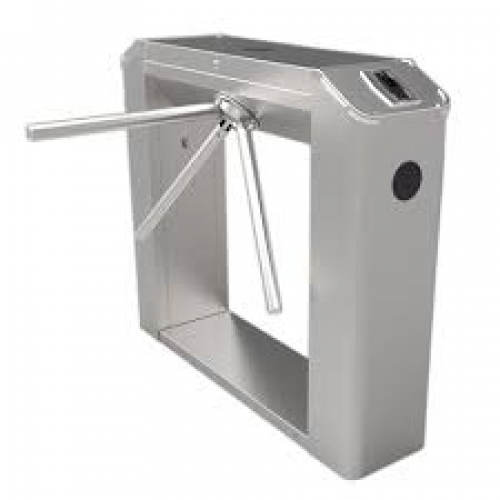

TS2000 Semi-automatic Tripod Turnstiles

TS2000 Semi-automatic Tripod Turnstiles

• AC 220V/110V, 50/60Hz
• Operating Temperature: -28 °C- 60 °C
• Operating Humidity: 5%-85%
• Working Environment: Indoor/Outdoor(shelter)
• Rated Power: 60W
• Flow Rate: 25- 48 passage/minute
• Casework Materia: SUS304
• Pictogram Indication
• Control System
• Input controlled by dry contact
• Emergency Button Input

TS2000 Semi-automatic Tripod Turnstiles

Tripod turnstiles are compact and cost-effective entrance solutions designed for smooth and silent operation, less wear, tear and reduced power consumption, suitable for areas where there is a large flow of people.
The TS2000 Series, offer a well-designed, two-legged casework made of stainless steel, ideal for sites where large flows of people and robustness are issues.
On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. The status is shown on the led-way mode indicators on the top. Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators included as standard.

• Power Supply
• AC 220V/110V, 50/60Hz
• Operating Temperature
• -28 °C- 60 °C
• Operating Humidity
• 5%-85%
• Working Environment
• Indoor/Outdoor(shelter)
• Rated Power
• 60W
• Flow Rate
• 25- 48 passage/minute
• Casework Material
• SUS304
• Pictogram Indication
• Yes
• Control System
• Input controlled by dry contact
• Emergency Button Input
• Yes
• Dimension
• 111×98×26(CM) + arm length 50CM
• Package Dimension
• 120×108×38(CM)
• Net Weight
• 46KG
• Gross Weight with Package
• 54KG
• Optional Function
• Alternative material or shape, third-party access control integration, ticket system integration, passage counter
