PB1000 Automated Vehicle Barrier Gate – Gray

PB1000 Automated Vehicle Barrier Gate – Gray

• Resistant and compact, convenient for packing and reducing shipping costs.
• Designed for a long product life.
• The barrier can rise and fall steadily.
• Opening of the casing to access the mechanism, convenient for maintenance and customization.
• Simple installation, just fix the barrier on the ground and connect it to electricity.

PB1000 Automated Vehicle Barrier Gate – Gray

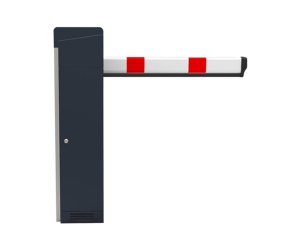

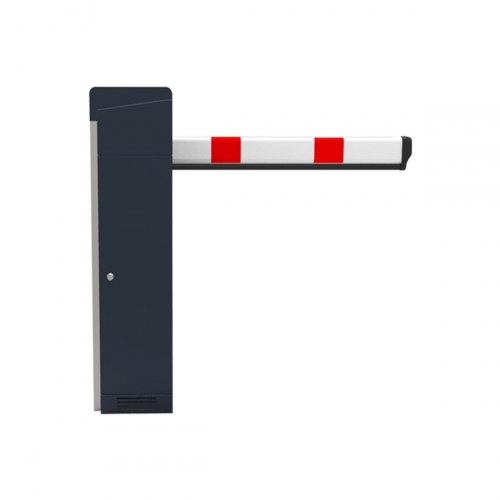

The new ZKTeco vehicular barrier controls the access of unauthorized vehicles in restricted areas. It is opened by means of a link with a remote control, an access control device, a long-range card reader or a plate recognition system.

An installed mass sensor will prevent untimely closure since the barrier will automatically lower after the vehicle has accessed; however, the barrier can be operated manually, by using a remote control or by pressing a button.

The barrier is equipped with a sensor to warn when there is an obstacle during closing, the barrier will rise automatically to avoid incidents with vehicles or people, in the same way a strip of LED light is also optional to indicate the opening and closing, helping the driver not to hit the barrier.

Technical specifications

• PB1010L / R PB1030L / R PB1060L / R
• Arm Length 3m 4m
• (4.8 m with Telescopic Arm) 5 m
• (5.8 m with Telescopic Arm)
• Opening / Closing Time 1.8 sec 3 sec 6 sec
• Power supply 110V AC or 220V AC
• Maximum Energy Consumption 200W
• Frequency 50-60 Hz
• Cabinet material Steel with Powder Coating
• Arm Material Aluminium alloy
• Structure Molten iron
• Operating Temperature -20 ° C to 60 ° C
• Operation Humidity
