Digital to Analog Audio Converter - Black

 Digital to Analog Audio Converter - Black

• Input audio: Coaxial or Toslink digital audio signals to analog L/R audio ,1 x Toslink or 1 x RCA (Coaxial);

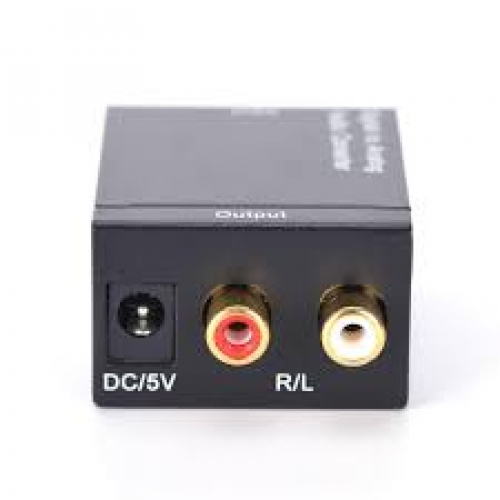

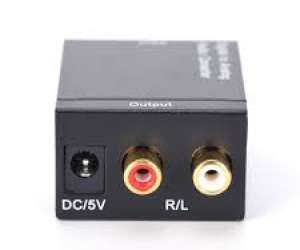

• Output audio: L/R audio ,2 x RCA(R/L);
• External power supply: DC 5V /1A
• Supports uncompressed 2-channel LPCM digital audio signal output;
• Supports sampling rate at 32, 44.1, 48, and 96 KHz;
• 24-bit S/PDIF incoming bit stream on left and right channels;
• Operating temperature: 0~70°C
• Dimensions: 50 x 40 x 26 mm

The digital to analog audio converter is designed for either home or professional audio switching.It converts coaxial or toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA jacks. Use USB output power that is more environmentally, not only reduce costs, but also compatible with all country.Connection and operation

Before installation,please make sure all devices you wish to connect have been turned off.
1. Connect the audio source device to the converter using appropriate fiber optical cable or coaxial cable.
2. Connect the A/V receivers or amplifiers to the converters to the converter using the appropriate R/L cable.
3. Insert te DC side of 5V power supply into the converter and then connect the AC side of the power supply into the wall outlet.
Note: When connecting to the toslink and Coxial cables at the same time,the product will give priority to toslink input.

Attention:Insert/ exact cable gently.
This item is not suitable for 5.1 CH/ Dolby audio.
