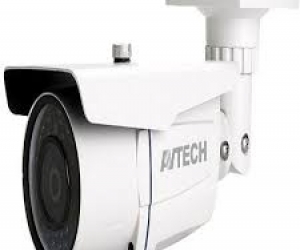

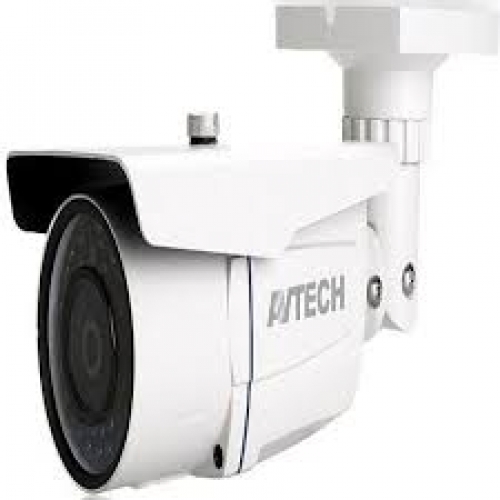

DG 205 1080P IR Bullet Vari-Focal Camera - White

DG 205 1080P IR Bullet Vari-Focal Camera - White

• 1/2.7” CMOS Sensor
• 1080P video output
• Low light sensitivity of 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
• Day and night 24-hour surveillance with IR effective distance up to 25 meters
• IP66 for weather-proof application
• Camera parameters adjustable when used with AVTECH HD CCTV DVR

AVTECH DG205 BANGLADESH

PICK-UP ELEMENT :1/2.7”CMOS IMAGE SENSOR
NUMBER OF PIXELS : 1930(H) X 1088(V)
VIDEO FRAME RATE :1080P-30FPS / 1080P-25FPS
MIN. ILLUMINATION : 0.1 LUX / F1.4(WIDE)~F2.8(TELE), 0 LUX (IR LED ON)
S/N RATIO : MORE THAN 48DB (AGC OFF)
SHUTTER SPEED :1/30 (1/25) SEC-1/720000 (1/600000) SEC
LENS : F2.8-12MM / F1.4 ~ F2.8
LENS ANGLE:WIDE: 104° (HORIZONTAL) / 56° (VERTICAL) / 124° (DIAGONAL)
TELE: 35° (HORIZONTAL) / 20° (VERTICAL) / 40° (DIAGONAL)
IR LED:36 UNITS
IR EFFECTIVE DISTANCE : UP TO 25 METERS
IR SHIFT : YES
DAY & NIGHT MODE : YES
IRIS MODE : AES
WHITE BALANCE : AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
AGC : ADJUSTABLE
SHARPNESS : ADJUSTABLE
FLICKERLESS : 50HZ / 60HZ / OFF
BLC : ADJUSTABLE
IP RATING : IP66
OPERATING TEMPERATURE : -20°C ~ 40°C
VIDEO OUTPUT : 1.0 VP-P COMPOSITE, 75Ω
POWER SOURCE (±10%) : DC12V / 0.5A
CURRENT CONSUMPTION (±10%) : 400MA
