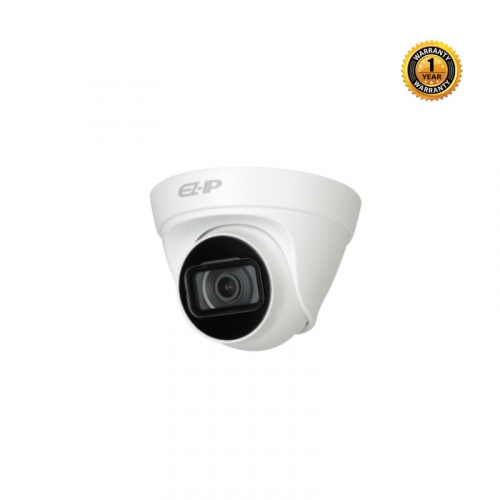

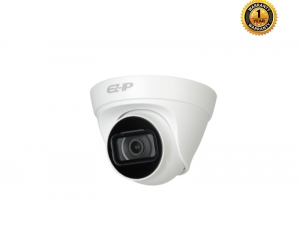

4MP IR Turret Network Camera | IPC-T1B40

• Camera

  Image Sensor

  1/3” 4Megapixel progresive CMOS

  Effective Pixels

  2560(H)x1440(V)

  RAM/ROM

  256MB/16MB

  Scanning System

  Progressive

  Minimum Illumination

  0.09Lux/F2.0(Color,1/3s,30IRE) 0.5Lux/F2.0(Color,1/30s,30IRE) 0Lux/F2.0(IR on)

  S/N Ratio

  More than 50dB

  IR Distance

  Distance up to 30m(98ft)

  IR On/Off Control

  Auto/ Manual

  IR LEDs

  1

  Lens

  Lens Type

  Fixed

  Mount Type

  Board-in

  Focal Length

  2.8 mm (3.6 mm optional)

  Max. Aperture

  F2.0/F2.0

  Angle of View

  H:101°/80°, V:54°/44°

  Focus Control

  Fixed

  Close Focus Distance

  0.8m(2.63ft)

  DORI Distance

  Lens

  Detect

  Observe

  Recognize

  Identify

  2.8 mm

  56m(184ft)

  22.4m(73.5ft)

  11.2m(36.7ft)

  5.6m(18.4ft)

  3.6 mm

  80m(262.5ft)

  32m(105ft)

  16m(52.5ft)

  8m(26.3ft)

  PTZ

  Pan/Tilt Range

  Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

  Intelligence

  Event Trigger

  Motion detection, Video tampering , Network disconnection , Scene change, IP address conflict, Illegal Access,Storage anomaly

  Video

  Compression

  H.265/H.264/H.264B/MJPEG(Sub Stream)

  Smart Codec

  Support H.265+/H.264+

  Streaming Capability

  2 Streams

  Resolution

  4M(2560x1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)

  Frame Rate

  Main Stream: 4M(1 ~ 20fps)

  Sub Stream: D1(1 ~ 25/30fps)

  Bit Rate Control

  CBR/VBR

  Bit Rate

  H.264: 32K~6144K H.265: 12K~ 6144K

  Day/Night

  Auto(ICR) / Color / B/W

  BLC Mode

  BLC / HLC / DWDR

  White Balance

  Auto/Natural/Street Lamp/Outdoor/Manual

  Gain Control

  Auto/Manual

  Noise Reduction

  3D DNR

  Motion Detetion

  Off / On (4 Zone, Rectangle)

  Region of Interest

  Off / On (4 Zone)

  Electronic Image Stabilization (EIS)

  N/A

  Smart IR

  Support

  Digital Zoom

  16x

  Flip

  0°/90°/180°/270°

  Mirror

  Off / On

  Privacy Masking

  Off / On (4 Area, Rectangle)

  Audio

  Compression

  N/A

  Network

  Ethernet

  RJ-45 (10/100Base-T)

  Protocol

  HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP; NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS;SSH

  Interoperability

  ONVIF Profile S&G, API

  Streaming Method

  Unicast / Multicast

  Max. User Access

  10 Users/20 Users

  Edge Storage

  NAS(Network Attached Storage) Local PC for instant recording

  Web Viewer

  IE, Chrome, Firefox, Safari

  Management Software

  Smart PSS, DSS,DMSS

  Smart Phone

  IOS, Android

  Certifications

  Certifications

  CE: (EN 60950:2000) FCC: FCC Part 15 Subpart B

  Interface

  Video Interface

  N/A

  Audio Interface

  N/A

  RS485

  N/A

  Alarm

  N/A

  Electrical

  Power Supply

  DC12V, PoE (802.3af)(Class 0)

  Power Consumption

  <4.8W

  Environmental

  Operating Conditions

  -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

  Strorage Conditions

  -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

  Ingress Protection

  IP67

  Vandal Resistance

  N/A

  Construction

  Casing

  Metal+Plastic

  Dimensions

  Φ109mm×85.5mm(4.29''x3.36'')

  Net Weight

  0.248Kg(0.55b)

  Gross Weight

  0.37Kg(0.82lb)
