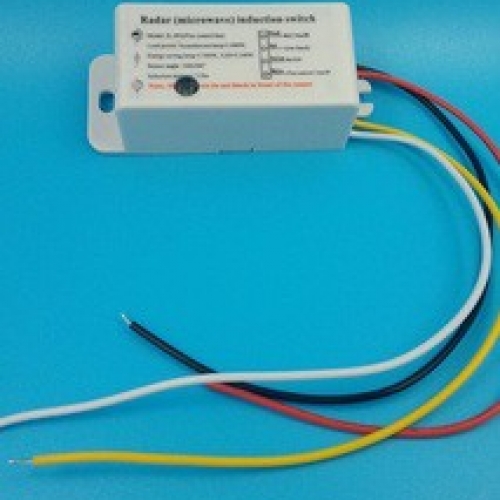

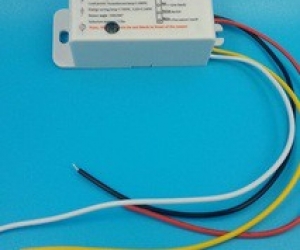

High sensitivety radar moving induction switch delay adjustable microwave embeddable

Microwave (radar) induction switch specification

Model:JL-083(Fire control line)

Welcome to use our products. The company's products are all through strict test and aging test, the circuit is stable and reliable in quality.

When there is a moving object into the induction range,the switch on. If the objects in induction range and delay period activity the switch will continue to delay and the lamp will not put out. Keep stationary state or away induction range turn off the light after a delay cycle. Built-in ambient light detection, the default lights in night.

Can penetrate some nonmetallic material induction, such as glass,gypsum board,,wood, plastic, etc, are low In the 15 cm wall may pass through induction. Especially suitable for hidden installation and does not affect the appearance.

Specification:

Size: 78x30x23 mm

Working power:AC170V~250V,50/60HZ

Method of induction: Active

Output: Relay.

Delay time:(default 20~30second)15~300second adjustable.

Illumination:(default 5LUX) 5LUX~5000LUX adjustable.

Induction distance:(default 5m)3~9m adjustable.

Sensor angle:360 degree.

Load range: all the lamp,exhaust fan.

Load power:Incandescent≤400W,Energy saving lamp≤300W,LED≤100W

Working temperature: - 20 ℃ ~ 50 ℃

Attention

1.To turn off power when installation, must be installed by professional

2.Do not overload to use

3.Please do not to volatile objects as the installed base. In the induction area, do not have an impact on the switch Detect obstacles or motion of object, don't have other equipment of the electromagnetic interference, such as high pressure Such as electricity, etc.

4.Being active induction, induction switch will emit electromagnetic waves, so on without stop, two micro Wave induction switch or the distance between the microwave induction lamp it's better to keep more than 5 meters, too close will interfere with each other.

5.This product is not suitable for outdoor installation.

Special tips:

A.       radar inductive switch distance problem, affected by the actual installation environment, distance is in commonly 3 to 9 m, The smaller space more narrow scope of local induction, such as corridor, corridor and so on; Space is empty The sensing range, the greater the like the garage. This is not a switch quality problem, is one of the characteristics of microwave, in the little space because the reflected wave and transmitted wave normal offset each other.

B.       After adjusting range of induction, need to wait for 3 minutes is adjusted range, so don't assume that regulate didn't response.

Adjust schematic diagram: Adjustable product at the time of debugging, please must use a Straight screwdriver gently adjust.

1. Illumination    2.Range           3. Time

 1: on the left night work, on the right daytime work;

 2: on the left to reduce , on the right to increase scope;

 3: on the left to reduce time, on the right to increase time;

Wiring diagram:
