radar High sensitivety moving lamp holder induction switch delay microwave e27 With power cord plug length 1.5 m 076c

The company for customers to design various types products of electronic, provide solutions, the price is cheap, first-class service.

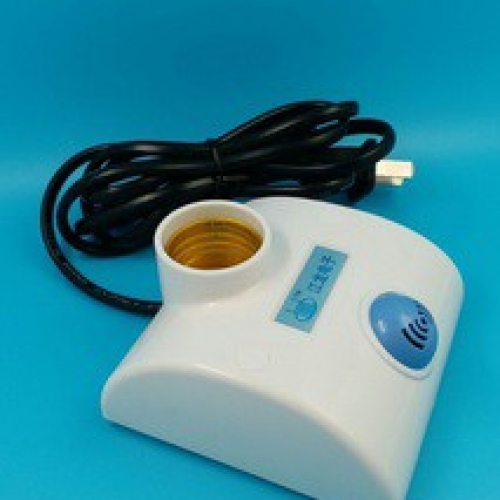

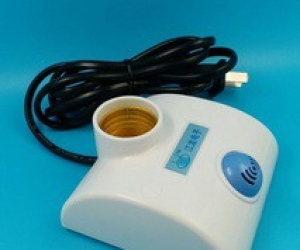

Microwave (radar) induction lamp holder specification

Model: JL-076C(With power cord plug length 1.5 m)

Welcome to use our products. The company's products are all through strict test and aging test, the circuit is stable and reliable in quality.

When there is a moving object into the induction range, the switch on. If the objects in induction range and delay period activity the switch will continue to delay and the lamp will not put out. Keep stationary state or away induction range turn off the light after a delay cycle. Built-in ambient light detection, the default lights in night.

Can penetrate some nonmetallic material induction, such as glass,gypsum board,wood, plastic, etc, are low In the 15 cm wall may pass through induction. Especially suitable for hidden installation and does not affect the appearance.

Specification:

Working power:AC170V~250V,50/60HZ(out of range can be customized)

Method of induction: Active

Output: SCR.

Delay time:about 30second. (out of range can be customized)

Illumination:(default 5LUX). (out of range can be customized)

Induction distance:(default 5m)4~8. (out of range can be customized)

Sensor angle:360 degree.

Load range: all the lamp.

Load power:Incandescent≤40W,Energy saving lamp≤60W,LED≤30W

Working temperature: - 20 ℃ ~ 50 ℃

Attention

1.To turn off power when installation, must be installed by professional

2.Do not overload to use

3.Please do not to volatile objects as the installed base. In the induction area, do not have an impact on the switch Detect obstacles or motion of object, don't have other equipment of the electromagnetic interference, such as high pressure Such as electricity, etc.

4.Being active induction, induction switch will emit electromagnetic waves, so on without stop, two micro Wave induction switch or the distance between the microwave induction lamp it's better to keep more than 5 meters, too close will interfere with each other.

5.This product is not suitable for outdoor installation.

Special tips:

A.       radar inductive switch distance problem, affected by the actual installation environment, distance is in commonly 3 to 9 m, The smaller space more narrow scope of local induction, such as corridor, corridor and so on; Space is empty The sensing range, the greater the like the garage. This is not a switch quality problem, is one of the characteristics of microwave, in the little space because the reflected wave and transmitted wave normal offset each other.

B.       After adjusting range of induction, need to wait for 3 minutes is adjusted range, so don't assume that regulate didn't response.
