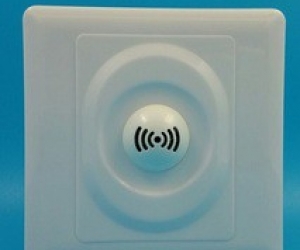

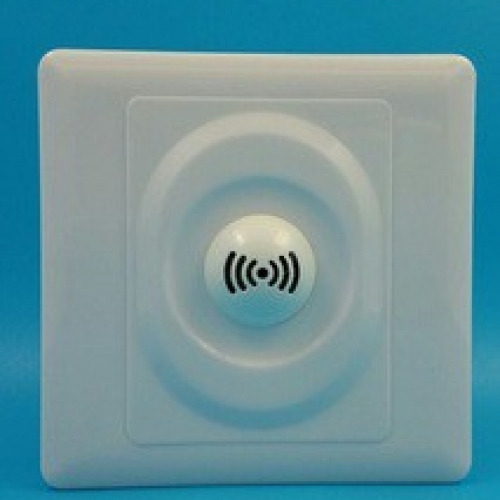

Pir sound and light-controlled energy-saving switch panel two lines ABS 86mm white 56

The company for customers to design various types products of electronic, provide solutions, the price is cheap, first-class service.

Sound and light-controlled delay switch operation instruction

                                  Model: JL - 056

Scope of application: applicable to the corridor, warehouse, balcony and other places of automatic to turn off the lights, do not apply to much noise at night place.

A. Product performance:

1. The energy conservation and environmental protection, low static power consumption, safe and reliable products.

2. The product USES the photosensitive control, with functions of automatic metering, can only work properly when dark.

B.Product technical parameters:

1. Working voltage: AC170-250 - v (50 Hz / 60 Hz).

2.load power: LED≤30W, energy-saving. lamp≤80W, Incandescent lamp ≤150 W.

3. Sensitivity: 5 LUX+ 2 LUX.

4. noise sensitivity: ≥50 dB.

5. Delay time: 40s.

C. Installation note:

1. please do not charged operation, require professional installation.

2. the product uses the international standard two wire connection mode.

3. it is strictly prohibited in the case of overload short circuit.

D. Wiring diagram:
