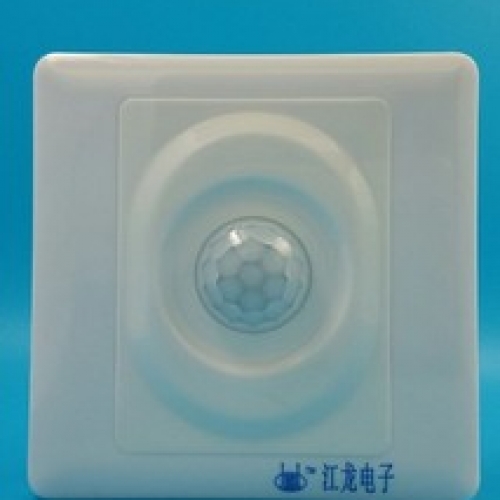

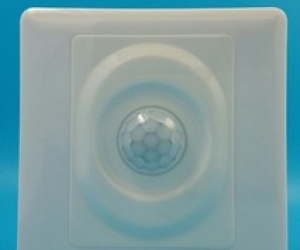

Pir sensor motion switch corridor adjustable delay 3B
Location: Elephant-Road-Dhaka
Rate this product!
The company for customers to design various types products of electronic, provide solutions, the price is cheap, first-class service.
The human sensor switch operating instructions
1. Features:
Our products adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically. (light on), when they leave light will delay and shut down automatically.
1,Super saving electricity, power consumption0.08 degrees per year
2,Wide working voltage, normally working in100V-250V
3,Large power, impedance biggest load can reach200W
4, Non-contact, simple installation(single wire system,just like ordinary switch connection)
5,Delay time adjustable
6,Sensitivity adjustable( can bright during the day)
7,Strong anti-jamming capacity, more safe and reliable
Components have been doing rigorous testing and screening, before delivery we have been doing aging test, please be assured to use
2. Specification:
Working power:AC100V~250V 50/60HZ
Load power:LED≤40W,Energy saving≤80W,Incandescent≤200W,Fan≤50W
Standby power:0.0088W
Delay time:15~300second
Illumination:5LUX~5000LUX
Induction distance:6~10m
Sensor angle:110~140degree
3. Application
Corridor,toilet,basement, warehouse,garage ,and other places of automatic lighting, exhaust fan convulsions and other automatic control electrical, can be used for security purposes at the same time
4. Attention
1.to turn off power when installation, must be installed by professional
2.This switch can work normally after 45 seconds when electricity, it is infrared sensor preheat time
3.Do not overload to use
