High quality pir sensor motion switch three wire relay output 014

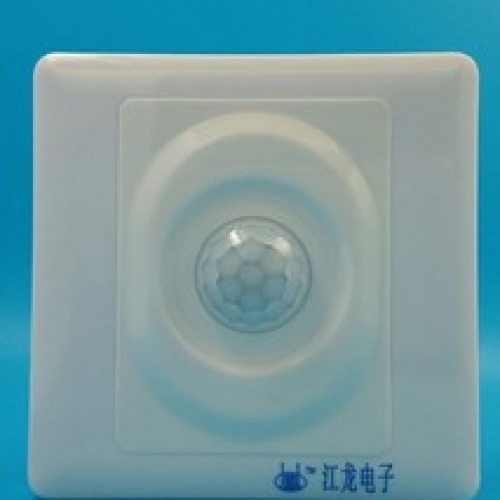

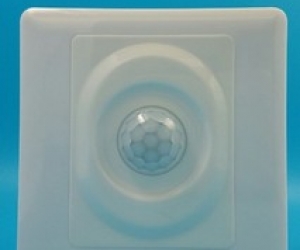

                                  Pir motion body sensor switch

Model: (JL-014)

Features and scope of application

The inside of the product imported PIR sensor to detect human movement , when the pedestrian access open automatically load sensing range , leaving the automatic delay off. It has : energy saving, long life, safe and reliable. Suitable for staircases , balconies , toilets , garages , basements, warehouses and other flammable chemicals .

Technical Parameters

1.the working voltage:AC170-250V 50HZ;

2.Load power: energy-saving lamps, LED lamps and other inductive load ≤ 500W,resistive load incandescent ≤ 1000W;

3.Connection:Four-wire;

4.ISO:5LUX;

5.Induction distance: 5-8 meters;

6.sensing angle:about 120 ° up and down 100 °;

7.the delay time: 30 seconds;

8.ambient temperature: -20 ℃ ~ +45 ℃;

9.can be accessed by all kinds of relay output load;

Precautions

1. JL-014 with no fire protection lines.

2. Turn off the power when installing the switch.

3. must be performed by a qualified electrician in accordance with the icon (see Manual), prohibited the use of a short circuit or overload.

4. The switch must work when lighting is dim, the day does not work.

5. Switch the distance light must be 0.5 meters or more, in order to avoid malfunctions during installation.

6. The switch for the first time after the power is turned off about 50 seconds to enter the normal working condition
