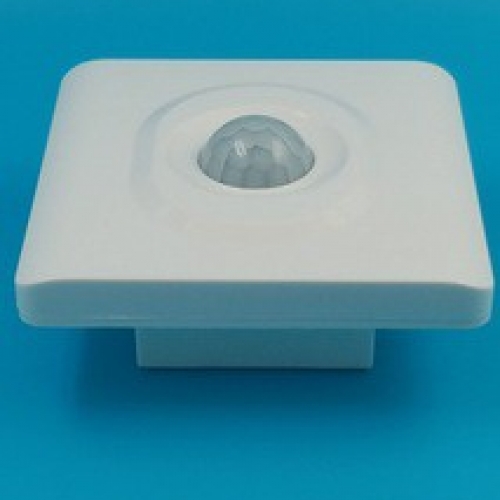

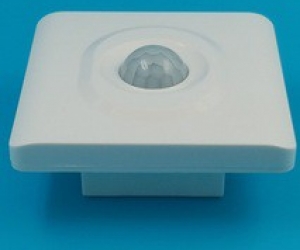

Corridor white 86mm wall adjustable pir motion sensor switch LED energy saving intelligent switch automatically turn off the lig036b

 PIR motion sensor switch operating instructions

Model:JL-036

1. Features:

Our products adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically. (light on), when they leave light will delay and shut down automatically.

1,Super saving electricity.

2,Wide working voltage.

3,Large power, impedance biggest load can reach200W

4,Non-contact, simple installation(Single line, no need for zero line.)

5,Strong anti-jamming capacity, more safe and reliable

Components have been doing rigorous testing and screening, before delivery we have been doing aging test, please be assured to use.

2. Specification:

Working power:AC90V~270V,50/60HZ.

Load power:LED≤40W,Energy saving≤80W,Incandescent≤200W,Fan≤50W.

Standby power:0.01W.

Delay time:15~300second.

Illumination:5LUX~5000LUX.

Induction distance:2~12m.

Sensor angle:110~140degree.

3. Application:

Corridor,toilet,basement, warehouse,garage ,and other places of automatic lighting, exhaust fan convulsions and other automatic control electrical, can be used for security purposes at the same time.

4. Installation wiring diagram:

Adjust schematic diagram: Adjustable product at the time of debugging, please must use a Straight screwdriver gently adjust.

Figure 1: Adjust the left side increase time. Adjust the right side reduce time.
Figure 2: Adjust the left side increase range. Adjust the right side reduce range.
Figure 3: Adjust the left side daytime working . Adjust the right side night working.

5.Attention:

1,To turn off power when installation, must be installed by professional.

2,This switch can work normally after 60 seconds when electricity, it is infrared sensor preheat time.

3,Do not overload to use.
