800KG Automatic Sliding Gate Opener
Location: Elephant-Road-Dhaka
Rate this product!

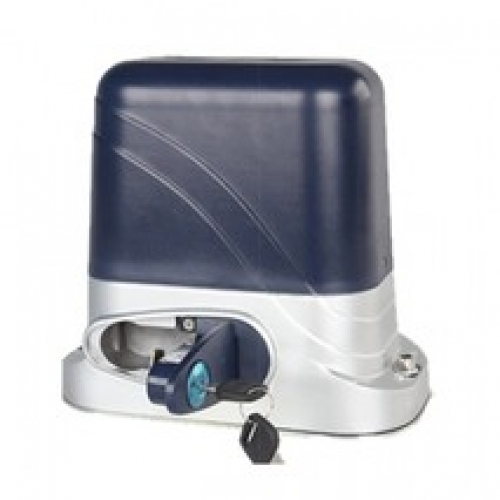

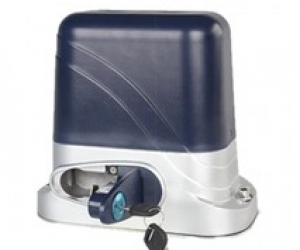

800KG Sliding Gate Opener
Product Description
This AC powered sliding gate opener is designed to operate sliding gates up to 800kg in weight. It is an all in one motor and control panel, making it simple to install and extremely compact and neat.
1.Weatherproof
2.Manual Override
3.All Metal Gears
4.Metal Gear Drive
5.All in one internal Motor and Weather Proof control panel
Technical parameters:
| Rated Voltage | 220V±10%/110±10% 50HZ/60HZ |
| Electric Motor | 220VAC /110VAC |
| Rated Motor Power | 250W |
| Gear Modulus | M=4 |
| Max Loading Weight | 800KG |
| Output Speed | 50r/min±10% |
| Output Torque(N.m) | 16.8-32.0N.m |
| Limit Switch Type | Magnetic/spring |
| Max.Pull Force | 1100N |
| Noise | 55dba |
| Working Temperature | -20°C ~ +55°C |
Product Show
Product Specification
1.The structure of integrated mechanic part and electronic part with built-in control panel, no any external controllers needed;
2.When power failure , use a allen key to release clutch,and push the door manually.
3.Gate auto stop and re-open when an obstacle is encountered
4.Auto close time can be adjusted from approximately 3 to 120seconds
5.Nice desin,heavy duty working with copper motor (many supplier use allumium motor ), copper worm gear,
6. Dure weight 600kg ,800kg ,1300kg for optional
Control board
Specification
Single button cycle working(Open,stop,close,etc)
Adjustable working time
Adjustable resistance sensitivity
Adjust auto-closing time
Terminal available for loop detector ,photocell,push button, keypad , access control equipment etc.
Custom rolling code makes the system more secure, high anti-theft performance
Installation
Package & Delivery
