New Designed Heavy Duty Automatic Swing Gate Opener

PRODUCT DETAILS

Product Features:

• Specifications

  Comply with Europe safety design,DC 24V low voltage motor that, compatible with back up power supply.

  The appearance of the motor body adopts anti-UV material which has outward retention in resisting any tough environments.
  Anti-theft clutch design can switch the operation to manual control easily when power failure.

  Soft start and slow stop

  Available to set pedestrian mode

  Adjust opening /closing interval time of double gate leaves

  Auto-stop if any obstacles detected during operation

  Built-in max motor running time adjustable for multiple safety protection

  Separately adjust the force of double gate leaves

  Single leaf or double leaves operation

  Easy installation and low maintenance

  12 months guarantee;lifelong post sales service

   Technical Data

  Power supply	220V/110V
  Motor power	24VDC
  Actuator stroke	300MM
  Max single Leaf width	2.5M
  Max single leaf weight	350KG
  Nominal Thrust	3500 N
  Gear Type	Worm gear
  Absorbed Power	144W
  Working Temperature	-20℃～50℃
  Protection class	IP55

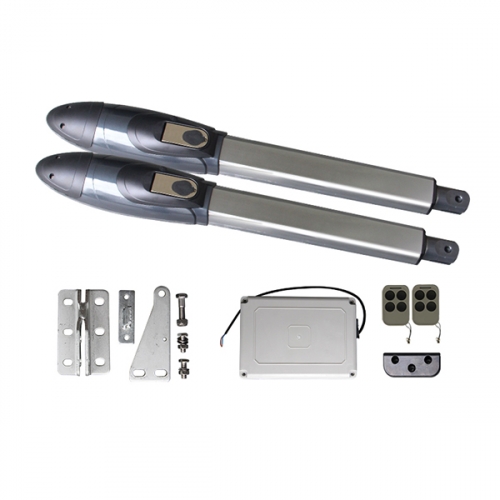

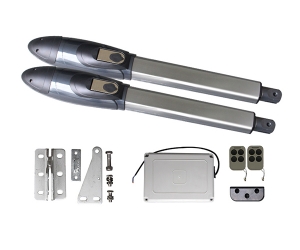

swing gate opener kit included

• 2 x Heavy duty DC motor that are pre-wired with motor cables
• 2 x Override spanners
• 2 x Remote controls
• 1 x Control panel
• 2 x Post mounting bracket
• 2 x Gate mounting bracket
• 1 x Rubber Gate Stop
• 1 x Instruction manual
•  Product photo:

Control board

Digital LED Menu brings a easy setting ,plug and play
Availble to set pedestrian mode
Adjustable working time
Adjustable resistance sensitiv
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
Custom rolling code makes the system more secure, high anti-theft performance
