HD 4 in 1 1080P AHD CVI TVI CVBS Module
Condition : Brand New
*Last Updated On :
6 years ago
*Status :
In Stock
Seller:
Location: Elephant-Road-Dhaka
Rate this product!
Description

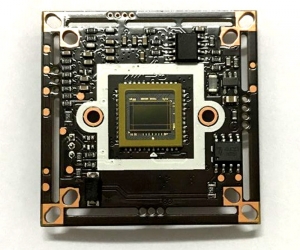

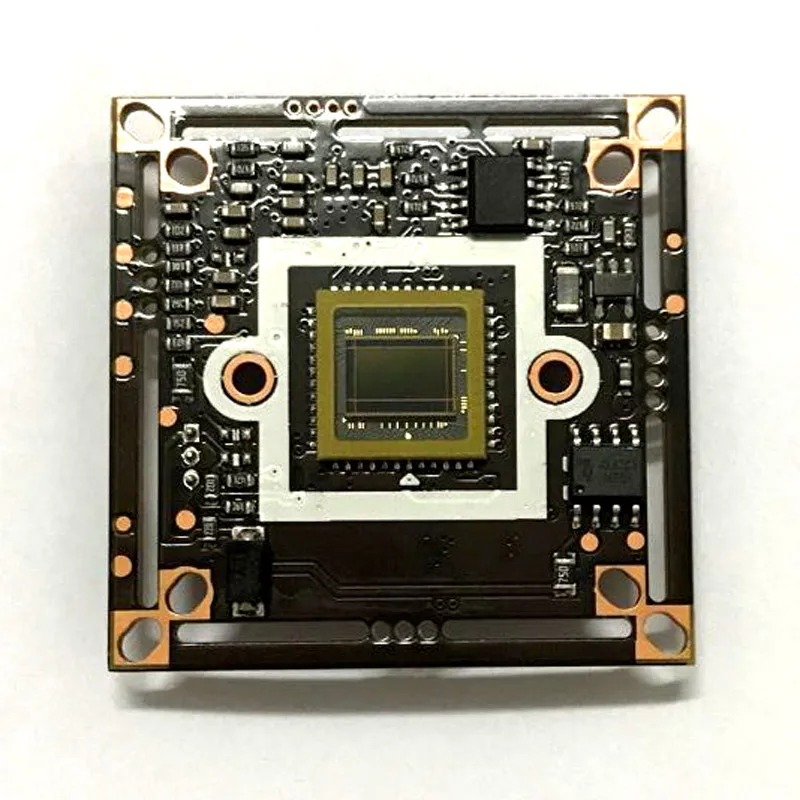

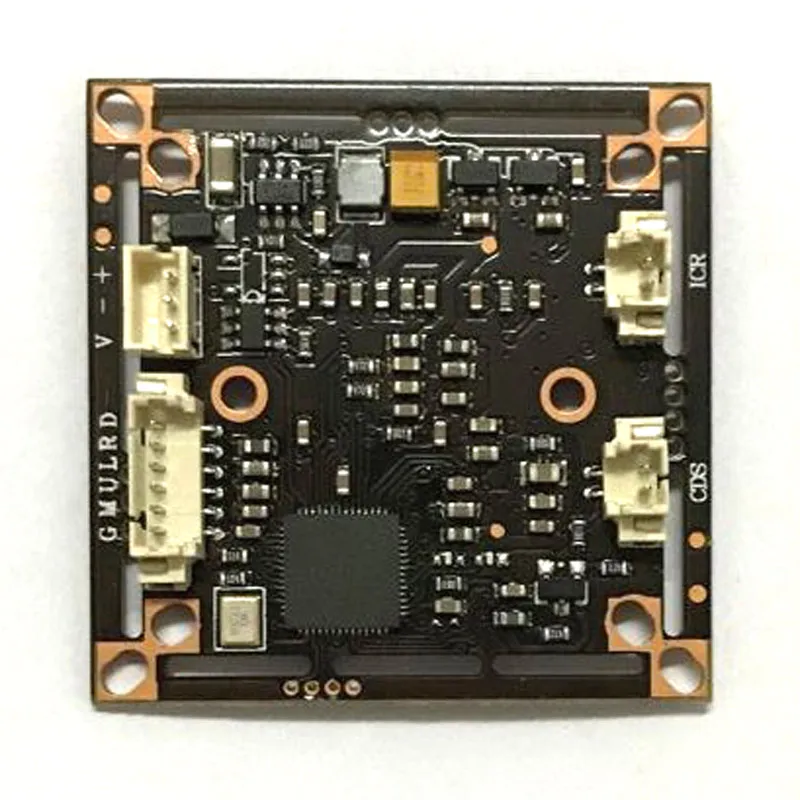

HD 4 in 1 1080P AHD CVI TVI CVBS 1/2.7" CCTV camera module 2MP 1920*1080 CMOS Security PCB board FH8536E+0230
AHD Camera MUST be used with AHD DVR
It Cannot work with standard DVR
Please make sure your DVR supports AHD camera before purchasing.
Feature:
1/2.7" FH8536E+0230 CMOS Senor module;
Video Resolution:1920*1080;
Advanced Y/C signal separation technology, analog filtering technology and 3D noise reduction technology;
NTSC&PAL in one, AHD/TVI/CVI/CVBS 4-in-1, Switch freely;
Standard 32*32 positioning hole, compatible with 38*38 hole.
Specifications:
| Sensor | 1/2.7" FH8536E+0230 sensor |
| Video Resolution | PAL/NTSC: 1920*1080 |
| Minimum Illumination | color：0.01Lux@（F1.2，AGC ON），0Lux with IR Black&White：0.01Lux@（F1.2，AGC ON），0Lux with IR |
| Photosensitive Resistance | 1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
| Shutter | AUTO 1/50(1/60) seconds to 1/10,000 seconds |
| Day and Night Function | Support IR-CUT |
| OSD Language | Chinese/English/German/French/Italian/Korean/Japanese |
| Video output | AHD/TVI/CVI/CVBS |
| Noise-signal Ratio | >52dB |
| Temperature and Humidity | -10℃~50℃, humidity is less than 90% (no condensation) |
| Power | DC12V/85MA±5MA (9V-20V) |
| Consumption | <5W |
| Size | Standard 32*32 positioning hole, compatible with 38*38 hole |
Packaging included:
1x 1/2.7" AHD TVI CVI CVBS 4 in 1 CCTV Camera Module 2mp 1080p
Warranty Term: One Year Warranty
