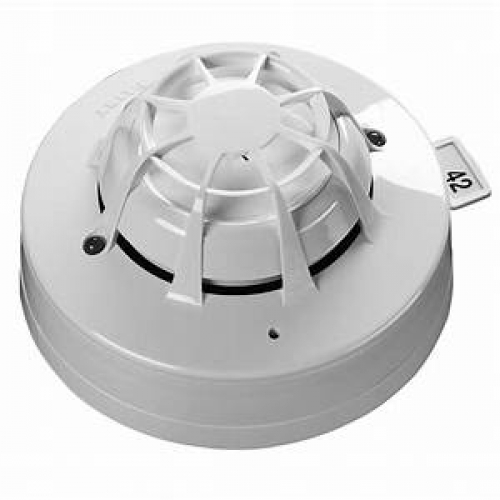

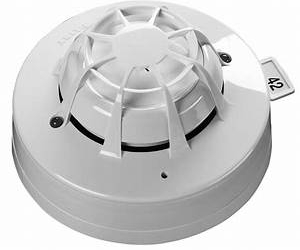

Apollo XP95 55000-400 Standard Temperature Detector

Part No. BF302XPH

• A high quality Type A2S standard temperature (55°C) heat detector
• Fully compatible with C-TEC's XFP & ZFP XP95/Discovery Addressable Fire Panels.
• Monitors temperature by using a single thermistor which provides a voltage output proportional to the external air temperature.
• Responds well to flaming fires with high heat output.
• Typically used in areas where smoke detectors cannot be installed such as kitchens.
• Red LED illuminates when the detector is in alarm.
• Certified to EN54-5 by the LPCB.
• Requires a BF308XP standard base or BF308XPR low power relay base.
• 'Xpert' card addressed for speedy installation.

Approvals/certificationsCertified to EN54-5 by the LPCB.CompatibilityCompatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels.Application/operationMonitors temperature by using a single thermistor network which provides a voltage output proportional to the external air temperature. Provides a good response to flaming fires with high heat.Application temperature25°C typical, 50°C max.Static response temperature54°C typical, 70°C max.Supply wiring2-wire, polarity insensitive.Supply/operating voltage17 to 28V DC.Quiescent current250µA average; 500µA peak.Alarm current2mA (LED illuminated).IndicatorsClear LED emitting red light when in alarm.ConnectionsL1&L2 supply in/out; +R remote LED +Ve connection; -R remote LED -Ve connection. (4mA remote LED current @ 5V measured across remote load).Product dimensions (mm)100mm diameter x 42 mm H (not in base). 50mm height when in base.Construction & finishWhite polycarbonate V.O rated rated to UL94. Stainless steel terminals.IP RatingIP43.Weight105g (not in base); 157g (in base).Operating conditions/temperature-20ºC to +70ºC.NotesRequires a BF308XP standard base or BF308XPR low power relay base. 1mA power up surge current for 0.3 seconds.
