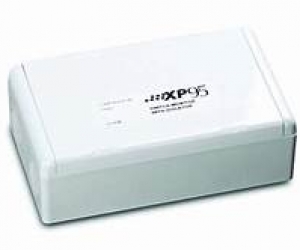

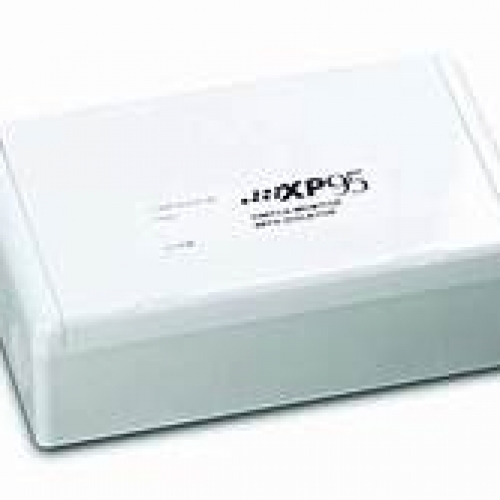

Apollo XP95 55000-847 Input Output Unit Part No. AFP730I
*Warrenty : 1 year,
Condition : Brand New
*Last Updated On :
6 years ago
*Status :
In Stock
Seller:
Location: Elephant-Road-Dhaka
Rate this product!
Description
Apollo XP95 55000-847 Input Output Unit
Part No. AFP730I
- Provides two voltage-free double pole changeover (DPCO) loop-powered relay outputs, a monitored switch input and an unmonitored, non-polarised opto-coupled input.
- Can report fault, switch open and switch closed levels.
- Three visible LEDs.
- Includes an onboard loop isolator.
- Capable of switching up to 30V at 1A.
- DIL switched addressed.
- LPCB certified to EN54-17/18.
| Approvals/certifications | Certified to EN54-17/18 by the LPCB. |
| Compatibility | Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
| Application/operation | Provides two voltage free, single pole changeover relay outputs, a monitored switch input and an unmonitored opto-coupled input. |
| Supply/operating voltage | 17 to 28V DC. |
| Quiescent current | 1.25mA (20KΩ EOL fitted); Switch-on surge currrent 3.5mA (max. 150ms); |
| Activation current | 3.5mA (max. 2 LEDs on) |
| Auxiliary relays | Two. Each rated at 1A @ 30V AC or DC (inductive or resistive). 10µA wetting current at 10mV DC. |
| Auxiliary inputs | Switch input (9-11V DC monitoring voltage); Opto-coupled input (35V DC max voltage, polarity senstive, 10kΩ impedance). |
| Indicators | Isolator On; Relay On; Switch Closed; Fault. |
| Product dimensions (mm) | 150 W x 90 H x 48 D mm. Designed to be surface mounted. |
| Construction & finish | White polycarbonate V.O back box & protective front cover rated to UL94. |
| IP Rating | IP54. |
| Weight | 240g. |
| Operating conditions/temperature | -20ºC to +70ºC. |
| Notes | Maximum load 20 XP95/Discovery detectors. |
