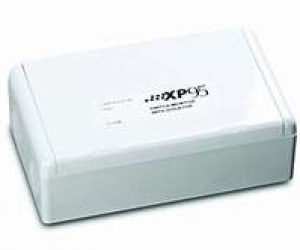

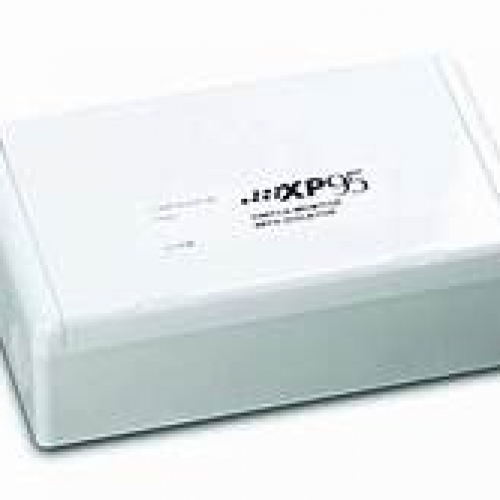

55000-845 Apollo XP95 Addressable Zone Monitor with Isolator

Product Features

• Manufacturer : Apollo
• Part Number : 55000-845
• Apollo XP95 Zone Monitor Module Interface

Technical Details

55000-845 Apollo XP95 Addressable Zone Monitor with Isolator

Features of the Apollo XP95 Addressable Zone Monitor with Isolator (55000-845):

• Loop-powered
• Short-circuit isolator
• Visible LED
• Wall mounted (surface)
• Dimensions: 150x90x48mm

The Apollo XP95 Zone Monitor with Isolator (55000-845) powers and controls the operation of a zone of conventional detectors, such as Apollo Series 65 or Orbis fire detctors from a Discovery or XP95 loop (up to 20 devices).

The Apollo XP95 Zone Monitor with Isolator is a Standard Interface which is designed for indoor use and is meant to be surface mounted to walls. It consists of a protective front cover, a PCB assembly and backbox with knockouts for connecting the cables.

The device has an input voltage derived from the analogue loop. The including short-circuit isolator senses and isolates a single short-circuit on the loop.
