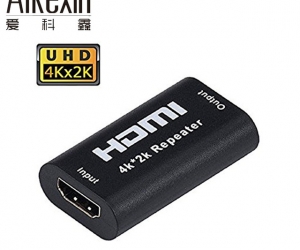

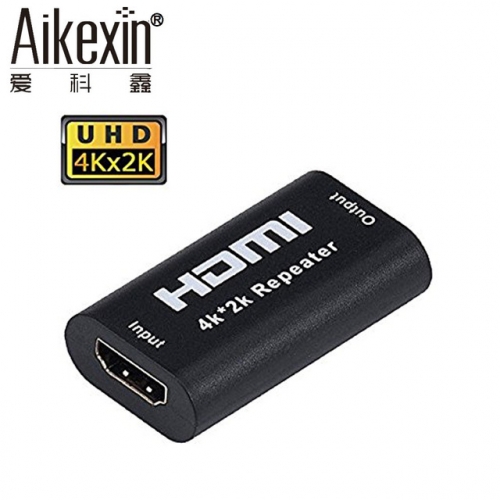

4K 4096x2160@60Hz HDMI Repeater 18Gbps Extender YUV 4:4:4 3D HDMI Adapter Amplifier Booster Over HDMI2.0 HDCP2.2/1.4
Location: Elephant-Road-Dhaka
Rate this product!
4K 4096x2160@60Hz HDMI Repeater 18Gbps Extender YUV 4:4:4 3D HDMI Adapter Amplifier Booster Over HDMI2.0 HDCP 2.2
4K HDMI2.0 Repeater（YUV 4:4:4）
1. Description
The 4K-HDMI Repeater transmits the signal to the display by actively regenerating the EQ value of the reconstructed signal source. HDMI Repeater through two HDMI cables, efficient transmission of HD signal up to 30 meters (4kx2k@60Hz), HD signal synchronization display.
The 4K-HDMI Repeater can really display the perfect HD video resolution up to 4096 x 2160, can be used in HDTV display platform, HDTV, TV box, DVD/DVR/NVR and other equipment, data monitoring center, conference and Exhibition Center etc.
2. Features
1. Bandwidth can be increased to 18Gbps, resolution can up to 4kx2k@60Hz, support YUV4:4:4
2. Support TV refresh rate is 120Hz, it is 2 times the transmission rate of version 1.4
3. Support 12 bit deep colour, Full HD, 3D
4. Support CEC direct connection
5. Compliant with HDCP2.2/1.4
6. Self-adjustment of HMDI cable EQ value
7. Bandwidth range: 25MHZ - 600mhz
8. Compatible with standard type connectors, support HDR
9. Power consumption less than 300MA
10. No need power
11. Transmission distance analysis of different resolution (using 24AWG HDMI cable)
|
Input |
Output |
|
1080P standard HDMI cable: 0-40 meters |
1080P standard HDMI cable: 0-10 meters |
|
4Kx2K@30Hz standard HDMI cable: 0-25 meters |
4Kx2K@30Hz standard HDMI cable: 0-10 meters |
|
4Kx2K@60Hz standard HDMI cable: 0-20 meters |
4Kx2K@60Hz standard HDMI cable: 0-10 meters |
3. Specifications
|
No |
Parameter |
Description |
|
1 |
Input interface |
HDMI-A Female |
|
2 |
Output interface |
HDMI-A Female |
|
3 |
Transmission distance |
4K@60Hz up to 30m, 4K@30Hz up to 35m, 1080P up to 50m(Using HDMI CTS1.4 standard cables) |
|
|
||
|
4 |
Impedance |
HDMI 100Ω |
|
5 |
Bandwidth |
18Gbps(HDMI2.0) |
|
6 |
Resolution |
4kx2k@60Hz, YUV4:4:4；480i/576i/480P/576P/720P/1080i/1080P |
|
7 |
Input level |
5V |
|
8 |
Power |
No need power, HDMI input take power |
|
9 |
Power consumption (w) |
<1W |
|
10 |
Size(mm) |
42x34x125mm |
|
11 |
Weight(kg) |
0.03 |
|
12 |
Working temperature(℃) |
-5 to +65℃(+23 to +149℉) |
|
13 |
Storage temperature9℃） |
-20 to +65℃(-4 to +149℉) |
|
14 |
Relative humidity(℃) |
5 to 95%RH (non-condensing) |
|
Note |
: Specifications subject to change without further notice. |
|

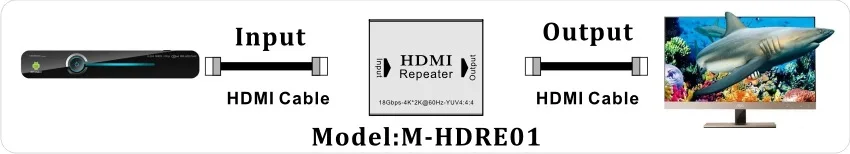

5. Installation and Diagram
1）Connect the HDMI signal source (such as PS3, TV box, etc.) to the HDMI Repeater input port
2）Connect the HDMI display device (such as: HD-LCD, HD-DLP) to the HDMI Repeater output port
Kindly reminder:
1) please gently insert the cable.
2) please do not plug in or unplug the HDMI cable when power is switched on. Please connect the HDMI cable when the power is off.
***********************************************************
